Tulsa Opera’s Baseball-Themed Rigoletto is a Grand Slam with L-Acoustics Tulsa Opera’s Baseball-Themed Rigoletto is a Grand Slam with L-Acoustics...
Unique production of Verdi’s famous opera in the Tulsa Drillers’ ONEOK Field relied on Axiom Audio’s Kara enclosures arrayed in a configuration usually seen at the Super Bowl
TULSA, Oklahoma – December 2020 – Live music has proven it will find a way despite the lockdowns on performances compelled by the COVID-19 pandemic. One of the more imaginative examples of this was the October 9th performance of Verdi’s iconic opera Rigoletto by the Tulsa Opera, which was staged at ONEOK Field, home of the Tulsa Drillers minor league baseball team and Double-A Affiliate of the LA Dodgers.
Every note of the operatic repertoire of Rigoletto was heard clearly and sweetly by the 1,685 socially-distanced audience members seated in the 2,700-capacity stadium thanks to an L-Acoustics Kara PA system provided by locally-based Axiom Audio.
The system consisted of 24 Kara enclosures, six SB18 subs, and three four-speaker clusters of Kiva II used as center and sidefills, all powered by six LA12X and three LA4X amplified controllers. These components were on an Optocore fiber network that also included a DiGiCo SD10 FOH mixing console paired with two SD-Racks.

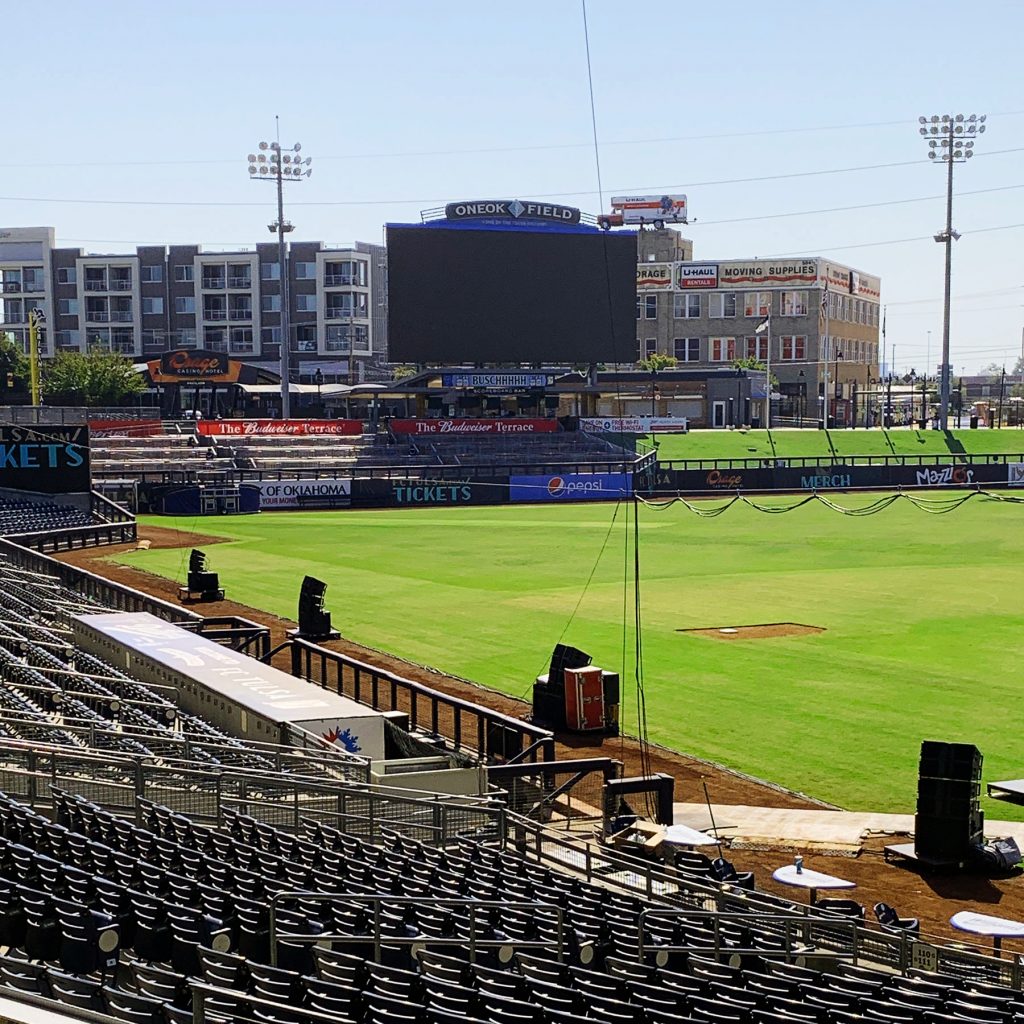

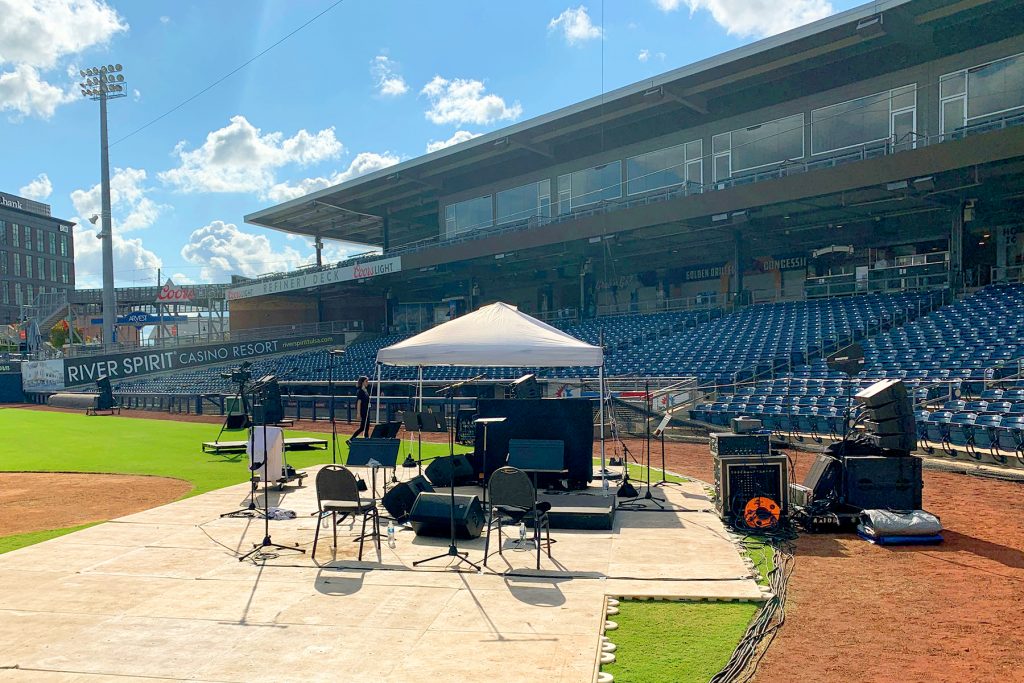

The event’s PA design was as unique as the venue itself. The stadium management wouldn’t permit the rigging necessary to fly the sound system to be erected on the field’s grass areas, as would typically be done in an outdoor location such as this one. Instead, taking inspiration from Super Bowl music system configurations, the Kara speakers were loaded onto nine wheeled carts. These lined the first and third baselines, four per side, facing the grandstands, with the ninth cart positioned at home plate, just in front of the low risers that were the stage for six orchestra members: two violins, viola, cello, bass, and piano. This arrangement provided the necessary coverage for all of the widely-spaced grandstand seating.
However, it also created the added challenge of putting loudspeakers on the field as the opera vocalists, unfamiliar with wearing wireless microphones, would roam about during the performance, creating the potential for feedback each time they neared a speaker cluster. The solution was to make each cart its own node on the system, putting each of the nine speaker pods on a matrix at the front of house, allowing Front-of-House Engineer Steve Colby to turn off individual loudspeaker clusters as a performer approached one.
“We made the speakers individually controllable through the matrix,” says Axiom Audio President Ben Bruce. “Performers were moving all across the infield, and they’re opera singers, so they would be loud. Having individual control over the elements in what was essentially a distributed audio system greatly reduced the potential for gain-before-feedback. The Kara speakers were a perfect fit, in terms of size and power, for this.”
Colby agrees that the L-Acoustics system helped make the unique location for the opera performance a resounding success. “Kara’s coverage properties allowed for a large and effective stereo field between any two of the arrays deployed around the field,” he says. “As a result, we could pan vocals and effects a little farther apart than usual without diminishing the experience for audience members who were not centered between the arrays. In particular, this was noticeable with the amount of artificial acoustic ‘space’ we created using a touch of reverb. The available SPL and overall fidelity of the speakers are quite amazing given the compact size and light weight of the product. We were able to produce excellent coverage from a very small footprint. Ben Bruce at Axiom deserves all credit for laying out the speaker arrays and planning coverage. We planned to go with his existing L-Acoustics inventory from the start, so we discussed the extent of the COVID-defined seating, sightline issues, and my desire to have all the arrays be independently fed, and he ran with it, designing a system with excellent coverage and fidelity.”
Bruce is happy to credit the L-Acoustics components for letting the opera happen without a hitch. “That really began back in the shop, where we used L-Acoustics Soundvision to design the speaker placements,” he explains. “It was spot-on; when we arrived at the field with barely a day to set up, the angles were perfect. We positioned the boxes on the carts at the shop, and they were ready to roll. We had clarity and intelligibility, which are crucial for a show like this.”
L-Acoustics, the choice for touring music productions globally, was also the perfect choice for opera on the diamond. “L-Acoustics has paid special design attention to handling the speaker crossovers in such a way that does not contribute to ‘boxiness’ or other artifacts that are so noticeable when you are attempting to make the PA invisible by amplifying speech and singing without any effects beyond reverb. L-Acoustics has always been ahead of the curve on this,” says Colby, who also mixes and designs sound for the Boston Pops Orchestra and Boston Landmarks Orchestra. “My experience with L-Acoustics is that all of their product lines excel at reproducing the natural sound of the human voice.”
To view Tulsa Opera’s production of Rigoletto, visit www.tulsaopera.com/rigoletto. Axiom Audio can be found online at www.axiom.audio.
