SB18
High-power subwoofer, 18"
OMNI / CARDIO SUBWOOFER
L-VENTS
Introduced for the first time in 2007 in the SB28, the laminar venting technology is a progressive vent design that drastically minimizes turbulence noise leading to an increase in output capability. All current L-Acoustics loudspeaker enclosures with low-range capacities feature L-Vents.
OMNI / CARDIO SUBWOOFER
| Max SPL | 138 dB |
| Low frequency limit | 32 Hz |
| Transducers | LF: 1 x 18" |
| Weight | 52 kg / 115 lb |
| Directivity | standard or cardioid configurations |
POWERFUL
High-power handling and high-excursion driver for maximized output and bandwidth
SHARP
Clear low-frequency power with L-VENTS™
RUGGED
Built for the road with simple, fast, integral rigging
Inspiration
Bon Appétit! L-Acoustics X Series is Head of the Table at Urla
5XT
SB15m
SB18
Syva Sub
X12
X8

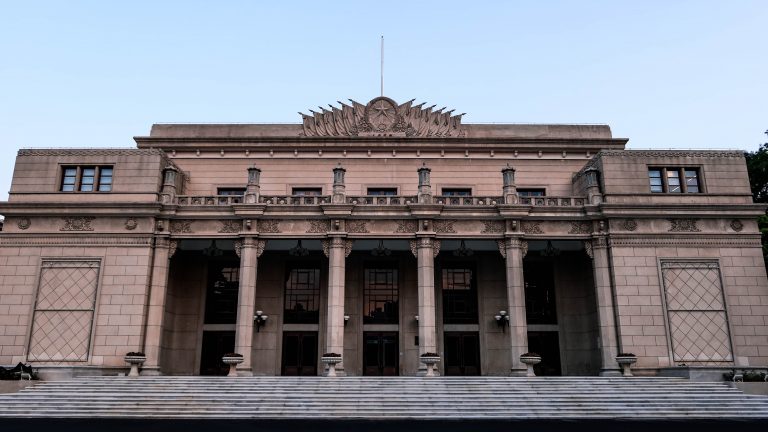

The Wuhan Theatre Upgrades to L-Acoustics Kara II
KARA II
SB18
X8

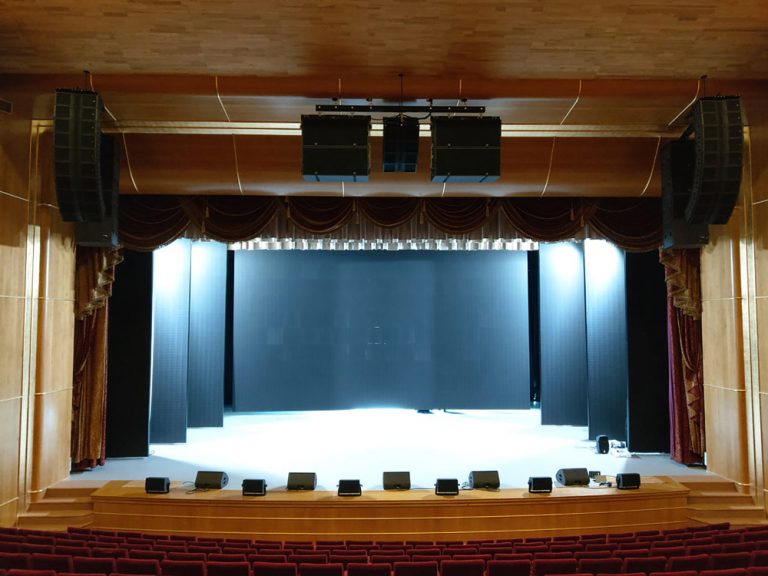

L-Acoustics Transforms Landmark Congress Hall in Russia
KARA II
SB18
SB28
Soundvision
X12
X8
Need more information?
Check out our Documentation Center for more documentations on this product.
Electroacoustic specs
High power compact subwoofer: 1 x 18''
amplified by LA4X / LA8 / LA12X
| Low frequency limit (-10 dB) | 32 Hz ([SB18_100]) |
| Maximum SPL1 | 138 dB ([SB18_100]) |
| Nominal directivity (-6 dB) | standard or cardioid |
| Transducers | 1 × 18″ |
| Acoustical load | dual bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 2 × 4-point speakON |
| Rigging and handling | 4 x handles |
| Weight (net) | 52 kg / 115 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Rigging components | steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
