Electronics
Racks
LA-RAK III
  • Overview
  • Full specs
  • System Elements
  • Downloads
Overview
Overview Full spec System Elements Downloads

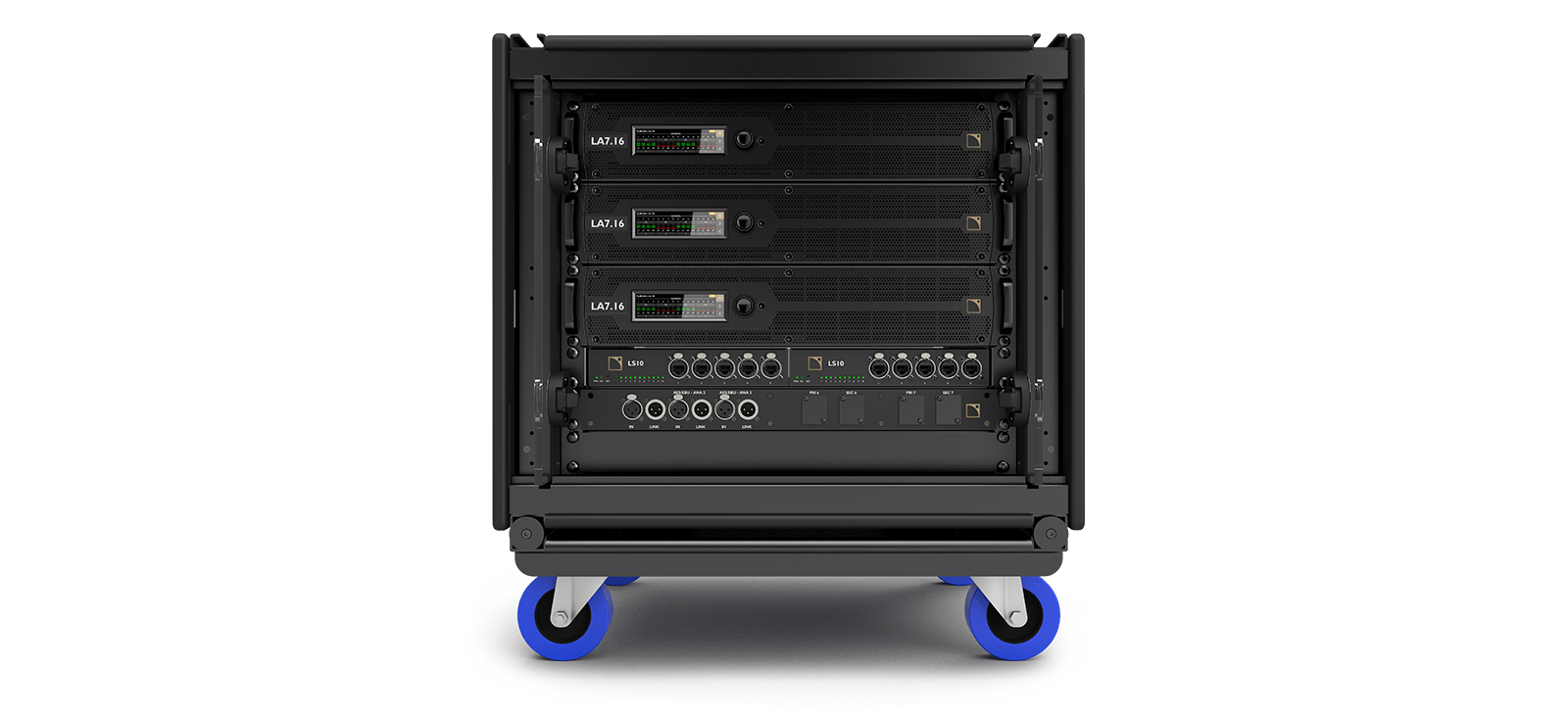

  1. Front

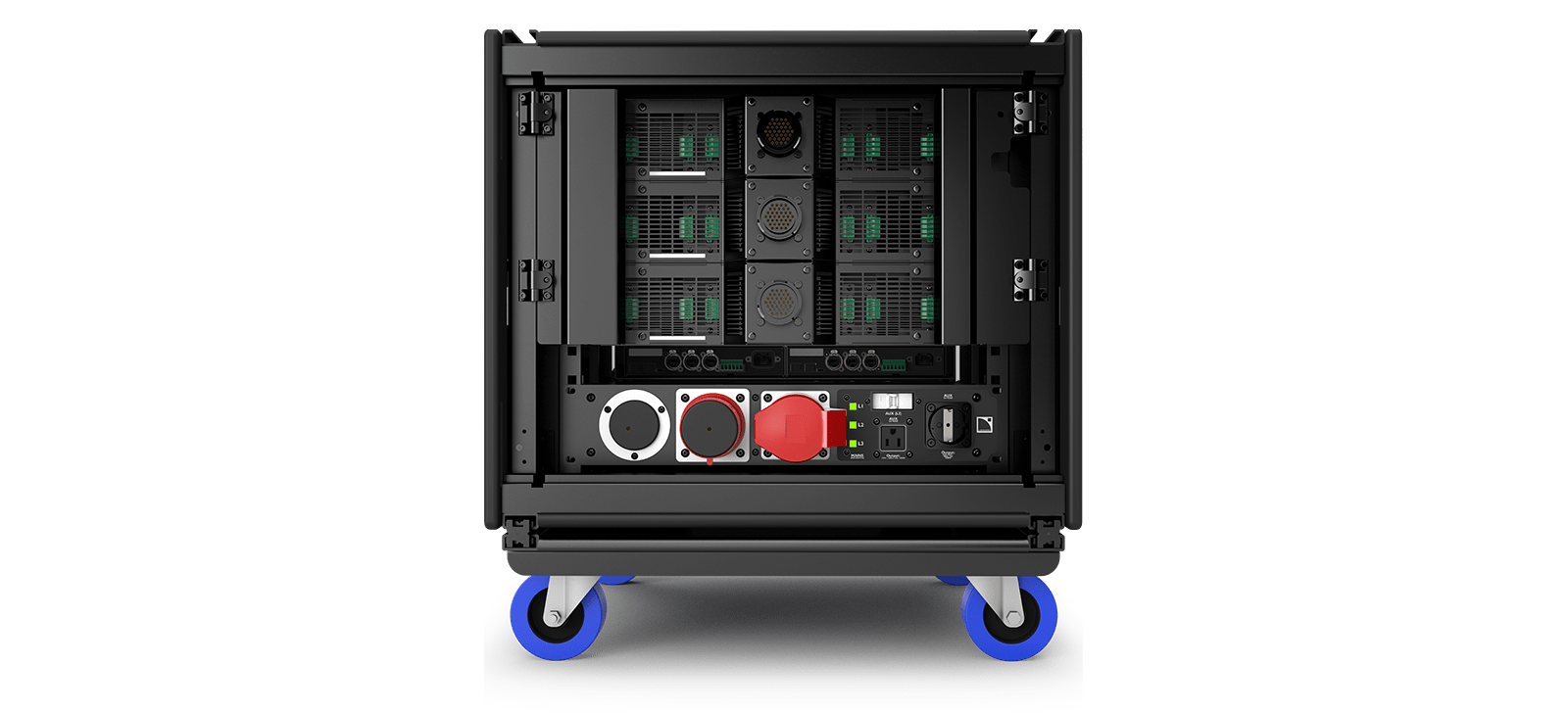

  2. Back
  3. Side

LA-RAK III

Touring rack

Architecture 48 channels of amplification
Output Power Up to 62,400 W at 8 ohms
Power supply Three-phase 32 A IEC in/link
30 A NEMA for 110 V
Inputs AVB, AES/EBU, Analog
Network Milan-certified with seamless network redundancy

Related Products

Previous Previous Next Next
background image
LA7.16
Amplified Controller
MILAN-Certified
New
Redundancy
background image
P1
MILAN-Certified
Processor
Redundancy
background image
LS10
Avnu-certified
Networking
Redundancy
background image
L2
New Product
background image
L2D
New Product
background image
BOB32
background image
SC32-4DO
background image
SC32-5
background image
SC32-10
background image
SC32-25
background image
SC32-50
background image
DOE2
background image
DOE45
background image
DOE100
background image
LA7.16
Amplified Controller
MILAN-Certified
New
Redundancy
background image
P1
MILAN-Certified
Processor
Redundancy
background image
LS10
Avnu-certified
Networking
Redundancy
background image
L2
New Product
background image
L2D
New Product
background image
BOB32
background image
SC32-4DO
background image
SC32-5
background image
SC32-10
background image
SC32-25
background image
SC32-50
background image
DOE2
background image
DOE45
background image
DOE100

Related Trainings

background image
System & Workflow
background image
Drive System
background image
System & Workflow
background image
Drive System

Need more information?

Check out our Documentation Center for more documentations on this product.

Go to documentation center
Content
Audio distribution
Power distribution
Cables
Rigging and handling
Physical data

Content

Amplification 3 LA7.16 Amplified controllers
Network 2 LS10 AVB switches
Distribution 1 LA-PANEL III for audio distribution
1 LA-POWER II for power distribution
Misc 2 doors, cables and 2 coupling bars

Audio distribution

Analog input / link 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) (Shared with AES/EBU)
AES/EBU 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) (Shared with Analog)
Analog input / link (rear) 3 x 12-point termial block connectors (Shared with AES/EBU)
AES/EBU (rear) 3 x 12-point termial block connectors (Shared with Analog)

Power distribution

AC input (US) 30 A - NEMA L21-30P (3P+N+E) male outlet
AC input/link out (EU) 32 A - IEC 60309 (3P+N+E) male outlet
32 A - IEC 60309 (3P+N+E) female outlet
AC presence 3 x dual LEDs: Left: US AC input / right: EU AC input
AC auxiliary output (US) NEMA 5-15 female outlet (AUX US MODE)
AC auxiliary output (EU) Type F «Schuko» female outlet (AUX EU MODE)
Protection 10 A type C circuit breaker (AUX L3)
AC output for LA12X (rear) 3 x power cords fitted with 32 A Neutrik powerCON® connectors
(AMP 1 L1, AMP 2 L2, AMP 3 L3)
AC input selector switch (rear) Switch between EU MODE and US MODE
AC output for LS10 (rear) 2 x IEC 60320-1 type C13 female outlets (AUX L3)

Cables

Analog 3 ANALOG OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft
3 ANALOG XLR3 male/female labeled cables, 0.55 m / 1.8 ft
AES / EBU 3 AES3 OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft
3 AES3 LINK XLR3 male/female labeled cables, 1.10 m / 3.61 ft
2 AES3 XLR3 male/female labeled cables, 0.55 m / 1.8 ft
Network 3 CAT7 red Ethernet labeled cables, 1 m / 3 ft
3 CAT7 black Ethernet labeled cables,1 m / 3 ft
2 RJ45 blockout cover for LA-PANEL II

Rigging and handling

Storage and transportation 2 coupling bars
2 coupling rails
4 handles
1 dolly board

Physical data

Weight 117.5 kg / 259 lb (with content)
Rack Units 9 RU
Material Polyethylene, aluminium and steel external structure, LEXAN®
polycarbonate doors

Dimensions

LA-RAK III schema

Documentation

LA-RAK III - System Spec Sheet
System Spec Sheet
english
LA-RAK III
Download
pdf
4.25MB
04/18/2023
