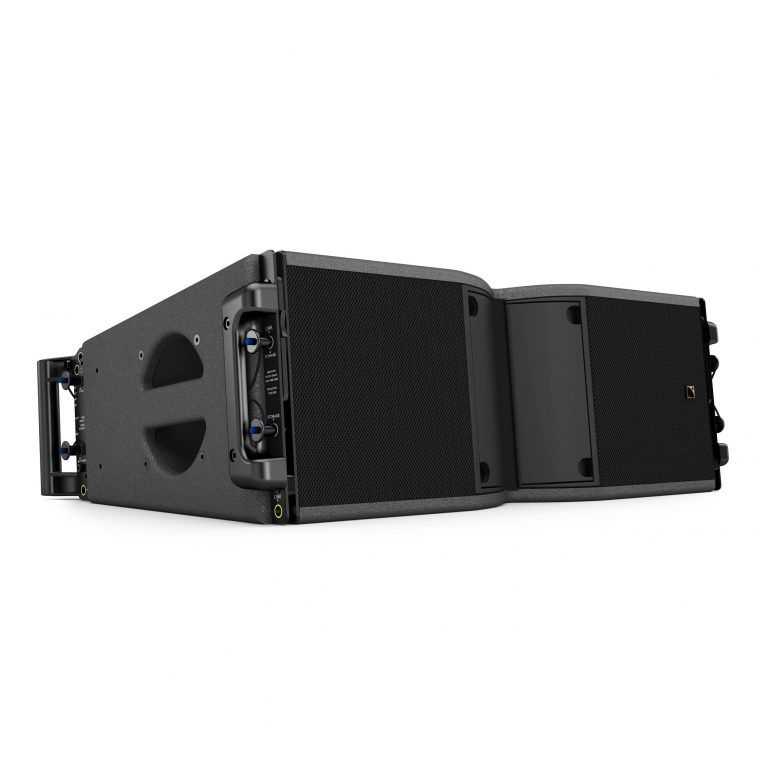

Electroacoustic specs

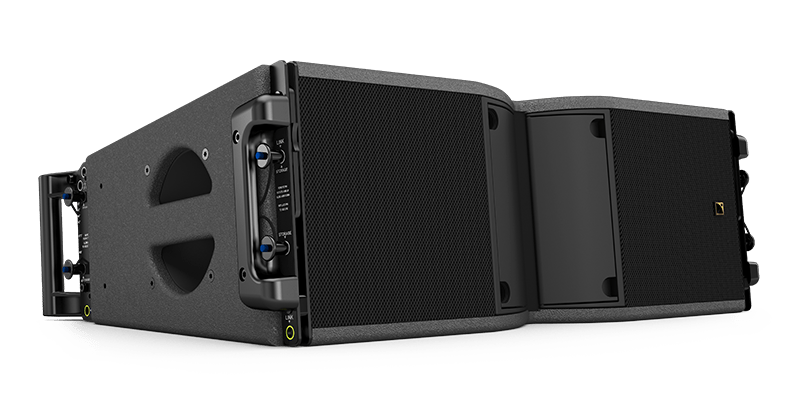

2-way active WST® enclosure

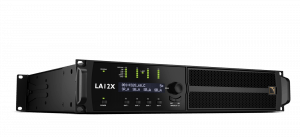

amplified by LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 55 Hz – 20 kHz ([KARA II 70]) |
| Maximum SPL1 | 142 dB ([KARA II 70]) |
| Nominal directivity (-6 dB) | horizontal: 70° / 110° symmetric or 90° asymmetric |
| Transducers | LF: 2 × 8″ neodymium cone drivers |
| Acoustical load | LF: bass-reflex |
| Nominal impedance | LF: 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 2 × 4-point speakON |
| Rigging and handling | 4-point captive rigging system |
| Dimensions | 733 mm (28.9 in) / 252 mm (9,9 in) / 500 mm (19.7 in) |
| Weight (net) | 26 kg / 57 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Rigging components | high grade steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
