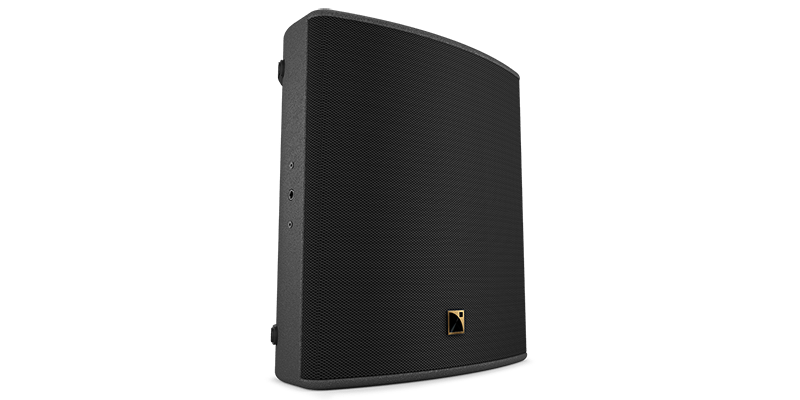

X12
Jack of all trades
2-way passive, 12"
| Max SPL | 136 dB |
| Bandwidth | 59 Hz- 20 kHz |
| Transducers | LF : 1 x 12" HF : 1 x 3" |
| Weight | 20 kg / 44.1 lb |
| Directivity | H: 90° V: 60° |
Inspiration
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 59 Hz – 20 kHz ([X12]) |
| Maximum SPL1 | 136 dB ([X12]) |
| Nominal directivity (-6 dB) | vertical: 90° symmetric |
| Monitor angle | without risers: 35° |
| Transducers | LF: 1 × 12″cone driver |
| Acoustical load | load bass-reflex, L-Vents, ellipsoidal waveguide |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | IN: 1 × 4-point speakON |
| Rigging and handling | 2 × handles |
| Dimensions | 430 mm (16.9 in) / 496 mm (19.5 in) /375 mm (14.8 in) |
| Weight (net) | 20 kg / 44.1 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP43 |
Dimensions
