In addition to audience experience and hearing health concerns, noise pollution issues are increasingly considered in large scale sound reinforcement for outdoor events. Among other factors, subwoofer positioning relative to the main system influences sound pressure levels at large distances, which may be considered as noise pollution. In this paper, free field simulations are first performed showing that subwoofers positioning affects rear and side rejections but has a limited impact on noise level in front of the system. Then, the impact of wind on sound propagation at low frequencies is investigated. Simulation results show that the wind impacts more ground-stacked subwoofers than flown subwoofers, leading to higher sound levels downwind in the case of ground-stacked subwoofers.

3D audio has only recently started to penetrate the live sound industry. This is due to specificities of live sound, especially touring, where a performance may be delivered in vastly diverse environments and address audiences of up to tens of thousands. Accommodating these challenges to offer consistent high-quality results requires specific technologies and practices. This chapter describes the specific constraints of live sound that lead to a selection of algorithms that are robust enough to adapt to various scales and loudspeaker layout. A framework is proposed for the evaluation of the performance of panning algorithm in the live sound context. The importance of the design of the loudspeaker system is outlined. A methodology and evaluation criteria are proposed to successfully scale 3D sound to large audiences. The creation of virtual environments in large scale venues and their portability from venue to venue creates specific constraints that are described and addressed. Finally, key applications and references are presented.

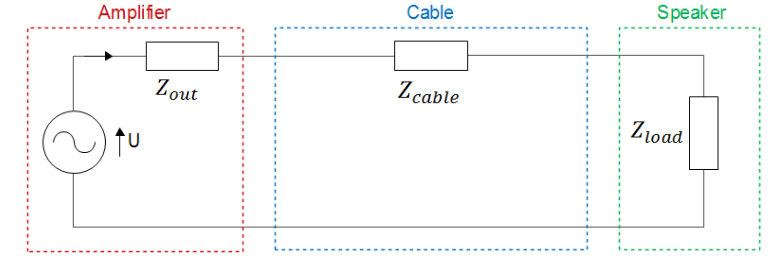

Nowadays, professional sound installations such as sport facilities, theme parks and entertainment venues require not only a public address system based on a 100 V / 70 V line speakers, but also sound quality, high sound pressure level and improved frequency bandwidth, which results in the specifications of low impedance systems. As cable lengths may sometimes go beyond a hundred meters, it can result in high power losses when driving a full spectrum amplified signal. This paper presents an electric model of speaker cables that includes two electromagnetic phenomenons, skin effect and inductive effect. The following parameters have been investigated – cable length up to two hundred meters, cable gauge from 4mm² to 10mm² in relation with various speakers, with different impedance loads. Then follows an in-depth interpretation of its impact on audio signal when connected between an amplifier and a loudspeaker voice coil. Along with all simulations of power loss is presented an acoustic measurement highlighting the accuracy of the model. This powerful tool may be an asset for sound designers and integrators to predict the impact of long cable runs on loudspeakers output.

The response of a loudspeaker system is affected by the presence of the audience. However, the loudspeaker system tuning is performed without an audience, applying equalization filters and delays for time alignment system components. The validity of these decisions with an audience is of primary importance. In this paper, the magnitude response of a loudspeaker system is simulated at low frequencies using Finite Element Method over a flat listening area for multiple source heights and audience densities. The results show that the audience modifies notches due to the floor reflection for a flown source and creates a build-up associated with a low-pass behavior for ground-stacked sources. The implications on typical loudspeaker system configurations are presented and discussed.

Bass-reflex designs can exhibit strong non-linear behavior around their resonant frequency with significant acoustic losses and parasite noise emission. These phenomena are mainly due to turbulences and flow separation at the port’s inlet and outlet. This work proposes a method to predict the resulting non-linear acoustic losses for a given loudspeaker, enclosure volume and port geometry. The approach consists of coupling computational fluid dynamics (CFD) simulation with loudspeaker non-linear motion modelization. Four different ports geometries mounted on one given loudspeaker enclosure are tested. The computed acoustic losses are compared with measurements and show a good agreement. The obtained results prove that the proposed method can predict non-linear losses with an average error less than 1 dB around the Helmholtz frequency.

This paper investigates how first-order reflections impact the response of sound reinforcement systems over large audiences. On the field, only few acoustical measurements can be performed to drive tuning decisions. The challenge is then to select the right measurement locations so that it provides an accurate representation of the loudspeaker system response. Simulations of each first-order reflection (e.g., floor or side wall reflection) are performed to characterize the average frequency response and its variability over the target audience area. Then, the representativity of measurements performed at a reduced number of locations is investigated. Results indicate that a subset of eight measurement locations spread over the target audience area represents a rational solution to characterize the loudspeaker system response.

Modern live loudspeaker systems consist of broadband sources, often using variable curvature line sources, combined with subwoofers. While it is common practice to fly the broadband sources to improve energy distribution in the audience, most subwoofer configurations remain ground-stacked because of practical constraints and alleged efficiency loss of flown configurations. This article aims at evaluating the efficiency of flown subwoofers for large audiences as compared to their ground-stacked counterparts. We use finite element simulations to determine the influence of several factors: baffling effect, trim height. We show that flown configurations remain efficient at the back of the venue while reducing the SPL excess at the front of the audience.

Extreme atmospheric conditions have a profound effect on sound propagation. This paper presents two installations where this problem must be accounted for: the main stage of the Coachella Valley Music and Arts Festival and the Hollywood Bowl. The approach presented here combines an optimized sound system design combined with signal processing for partial compensation of remaining loss in selected areas.

A simple model is proposed to account for the effects of cabinet edge diffraction on the radiated sound field for direct-radiating loudspeaker components when mounted in an enclosure. The proposed approach is termed the Distributed Edge Dipole (DED) model since it is developed based on the Kirchoff Approximation (KA) using distributed dipoles with their axes perpendicular to the baffle edge as the elementary diffractive sources. The DED model is first tested against measurements for a thin circular baffle and is then applied to a real world loudspeaker that has a thick, rectangular baffle. The forward sound pressure level and the entire angular domain are investigated and predictions of the DED model show good agreement with experimental measurements.

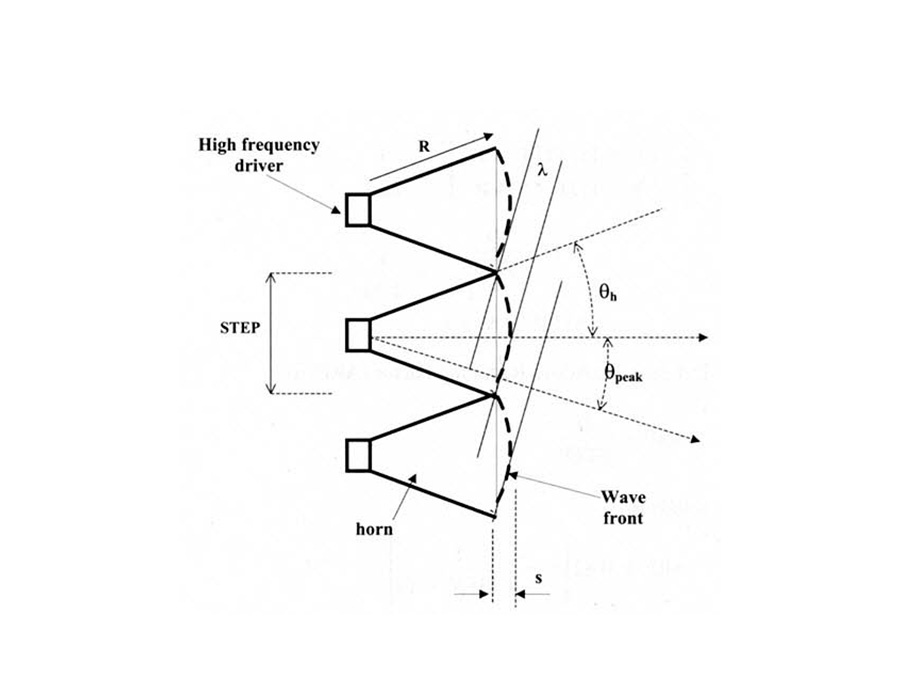

The Fresnel approach in optics is introduced to the field of acoustics. Fresnel analysis provides an effective, intuitive way of understanding complex interference phenomena and allows for the definition of criteria required to couple discrete sound sources effectively and to achieve coverage of a given audience geometry in sound-reinforcement applications. The derived criteria from the basis of what is termed Wavefront Sculpture Technology.

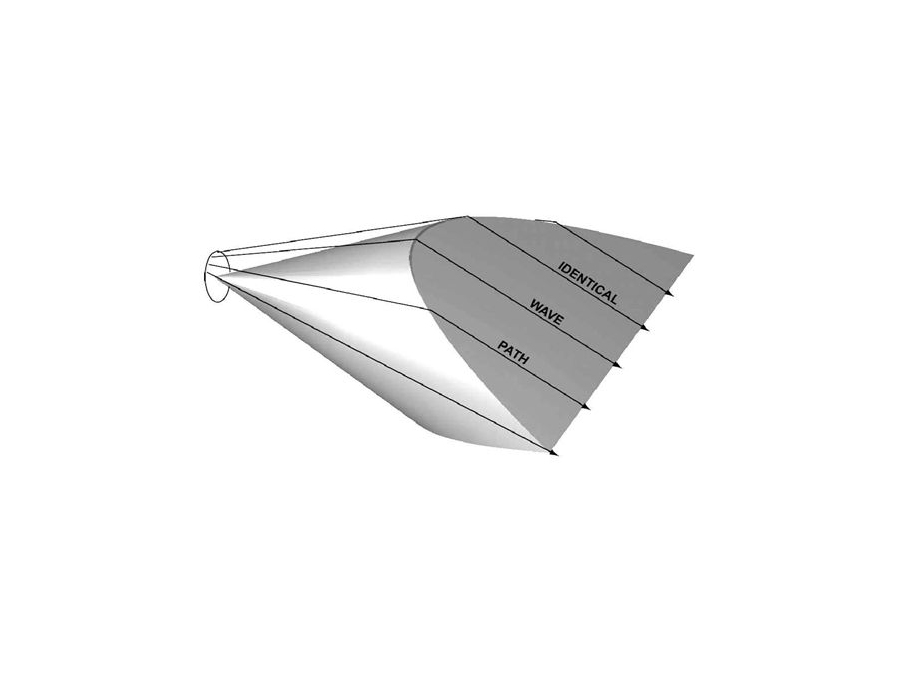

We introduce Fresnel’s ideas in optics to the field of acoustics. Fresnel analysis provides an effective, intuitive approach to the understanding of complex interference phenomena and thus opens the road to establishing the criteria for the effective coupling of sound sources and for the coverage of a given audience geometry in sound reinforcement applications. The derived criteria form the basis of what is termed Wavefront Sculpture Technology.

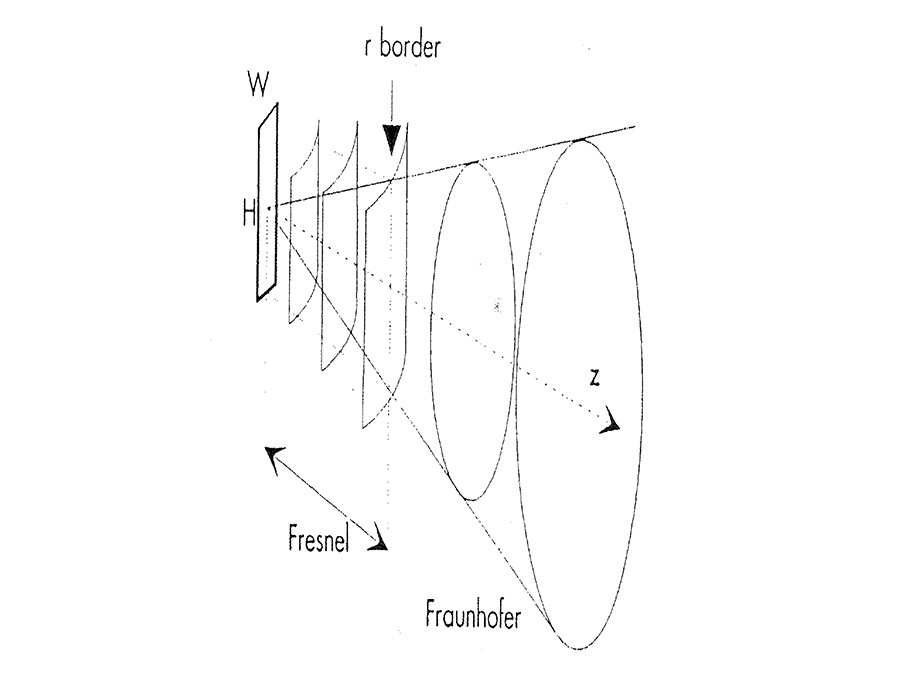

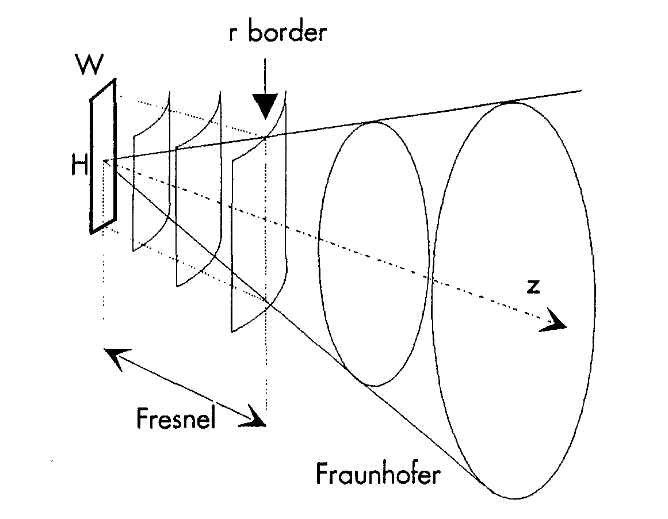

How to know whether it is possible or not to predict the behaviour of an array when the behaviour of each element is known? Our purpose is to describe the sound field produced by arrays in such a way that criteria for “arraybility” can be defined.
