Electroacoustic specs
2-way passive coaxial enclosure
amplified by LA7.16i / LA2Xi / LA4X / LA12X
| Usable bandwidth (-10 dB) | 67 Hz – 20 kHz ([X8i preset]) 43 Hz – 20 kHz ([X8i_40 preset]) |
| Maximum SPL1 | 129 dB ([X8i preset]) 123 dB ([X8i_40 preset]) |
| Nominal directivity (-6 dB) | 90° axisymmetric |
| Monitor angle | 35°/55° |
| Transducers | LF: 1 × 8″ cone driver |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs

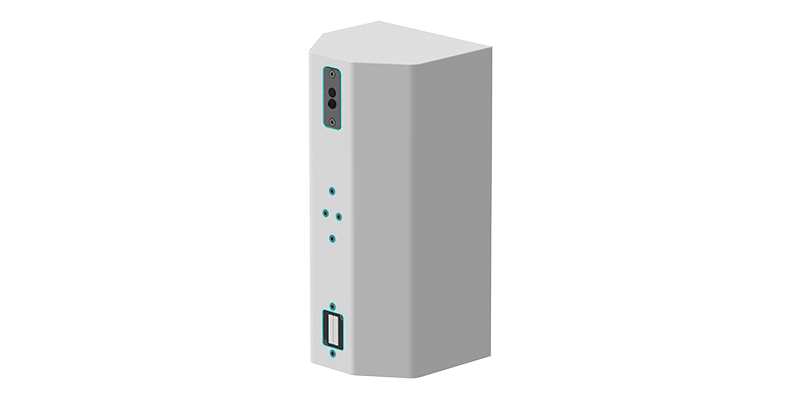

| Connectors | IN: 1 × 2-point terminal block LINK: 1 × 2-point terminal block |

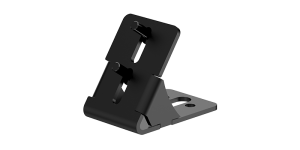

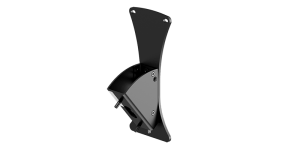

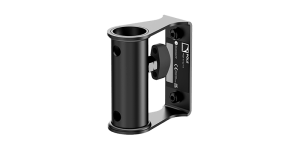

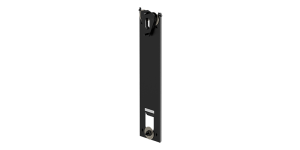

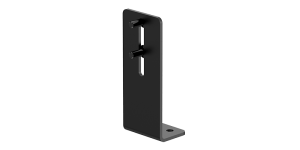

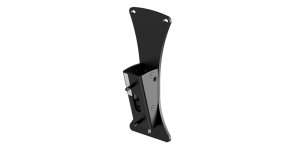

| Rigging and handling | 8 M6 inserts |
| Dimensions | 240 mm (9.4 in) / 480 mm (16.9 in) / 217 mm (8.5 in) |
| Weight (net) | 11 kg / 24 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
