Electroacoustic specs

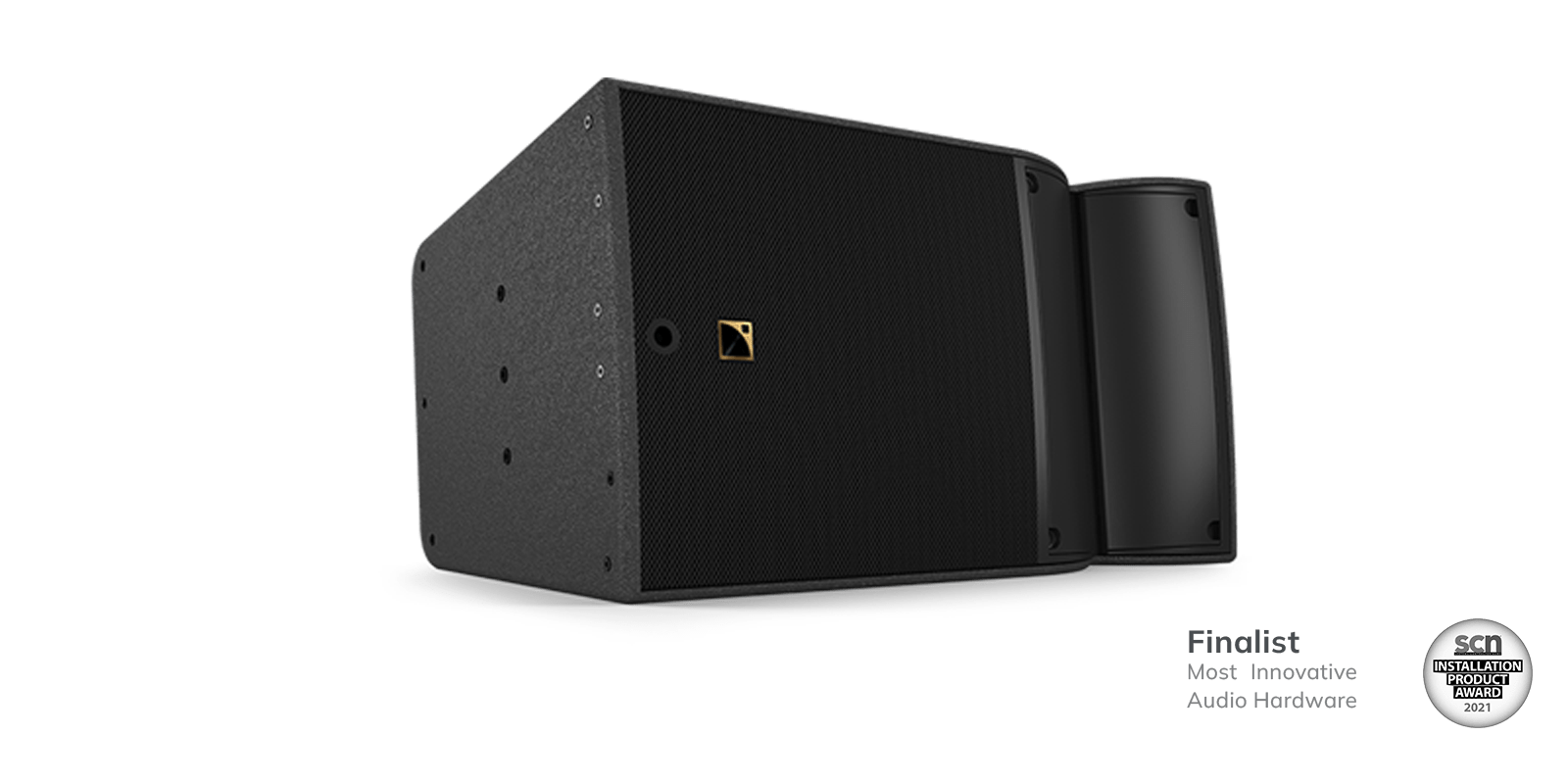

2-way passive constant curvature WST® 10° enclosure (installation version)
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 41 Hz – 20 kHz ([A15]) |
| Maximum SPL1 | 144 dB ([A15]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X |
| Nominal directivity (-6 dB) | Enclosure: 10° |
| Transducers | LF: 1 × 15’’ cone driver |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 × 4-point terminal block with push-in connection |

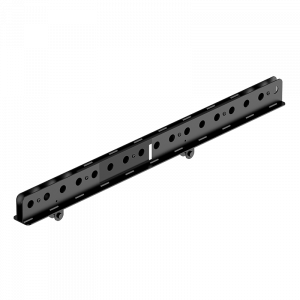

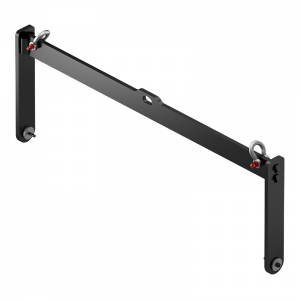

| Rigging and handling | external rigging kits 1 DIN580-compatible M8 threaded insert for safety |
| Dimensions | 752 mm ( 29.8 in) / 427 mm (16.8 in) / 522 mm (20.6 in) |
| Weight (net) | 32 kg / 71 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
