Electroacoustic specs

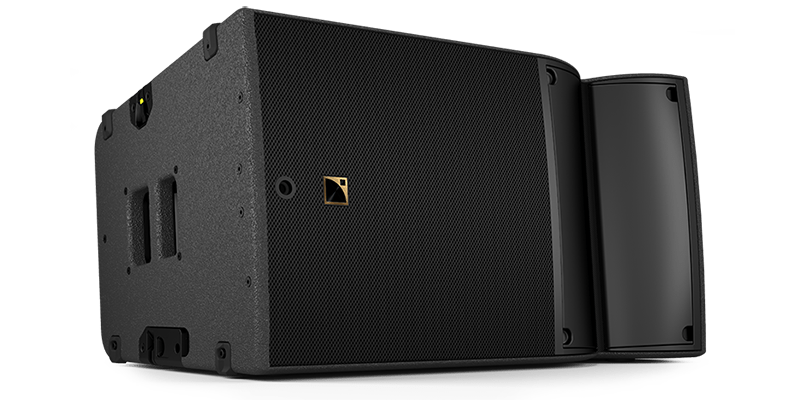

2-way passive constant curvature WST 10°
amplified by LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 41 Hz – 20 kHz ([A15]) |
| Maximum SPL1 | 144 dB ([A15]) |
| Nominal directivity (-6 dB) | Enclosure: 10° |
| Transducers | LF: 1 × 15″ cone drivers |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | IN: 1 × 4-point speakON |
| Rigging and handling | Flush-fitting two-point rigging system |
| Dimensions | 764 mm ( 30 in) / 427 mm (16.8 in) / 522 mm (20.6 in) |
| Weight (net) | 35 kg / 77 lb |
| Cabinet | Premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Rigging components | High grade steel with anti-corrosion coating |
| Finish | Dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
