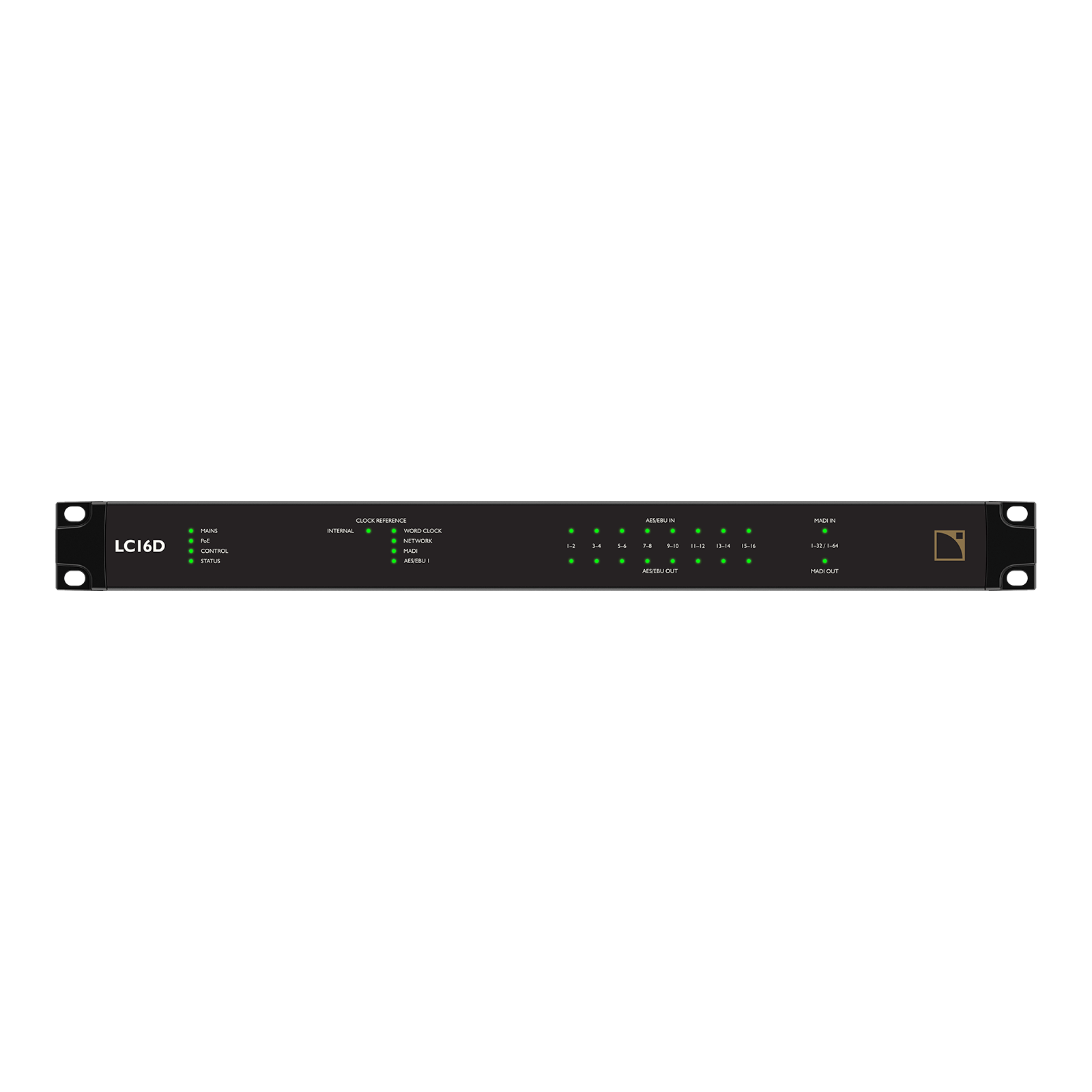

- Front

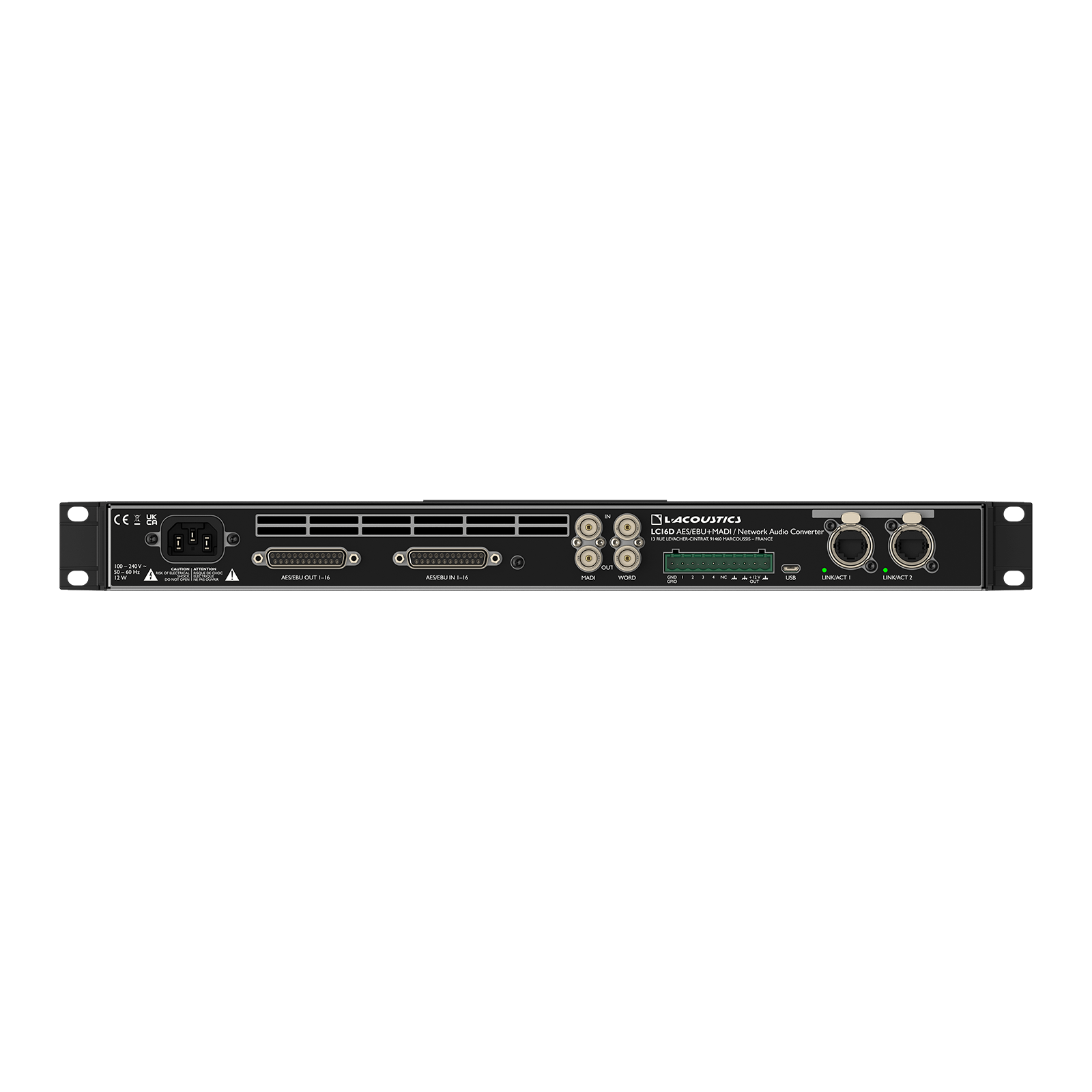

- Back
- Side

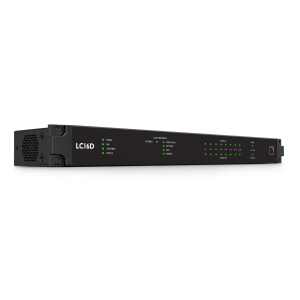

LC16D
AES/EBU+MADI Network Audio Converter
| Architecture |
Up to 80 MADI and AES/EBU input and output channels Up to 128 Milan-AVB input and output channels |
| Power |
Universal SMPS 2 x Power over Ethernet |
| Management | Embedded web interface |
| I/O |
AES/EBU MADI Milan-AVB or AES67 |
| Inputs |
128 Milan-AVB channels or AES67 channels (48 kHz only) 64 MADI channels (48 kHz) 16 AES/EBU channels |
| Outputs |
128 Milan-AVB channels 64 MADI channels (48 kHz) 16 AES/EBU channels |
| Sync sources | Internal, Word clock, Milan-AVB, MADI, AES/EBU |
| Height | 1U |
| Network |
Milan-certified with seamless network redundancy Or AES67 with seamless redundancy |
Technology
MILAN
HTTP
WebUI
AES67
Certification
Inspiration
Related Products
Need more information?
Check out our Documentation Center for more documents on this product.
Power supply
Specifications
| Mains rating | 100 V - 240 V ( ±10%), 50-60 Hz |
| connector | Lockable IEC connector C13 |
| Power consumption | 8W (typical/idle), 12 W (max) |
| Power redundancy | 1 x Universal SMPS 2 x Power over Ethernet (class 3 PD, compatible with IEEE802.3at-2009 PSE) |
Inputs
Specifications
| Milan-AVB | 16 streams of up to 8 channels 2 x Neutrik etherCONTM |
| AES67 | 16 streams of up to 8 channels (48 kHz only) |
| AES/EBU | 16 channels (8 x AES3) at 44.1, 48 or 96 kHz with Asymetric Sample Rate Converters (ASRC) 1 x DB25 female connector |
| AES/EBU Asynchronous Sample Rate Converter (ASRC) | 16 (can be disabled in pairs) |
| MADI | 64 channels (48 kHz) or 32 channels (96 kHz) 1 x BNC connector |
Outputs
Specifications
| Milan-AVB | 16 streams of up to 8 channels 2 x Neutrik etherCONTM |
| MADI | 64 channels (48 kHz) or 32 channels (96 kHz) 1 x BNC connector |
| AES/EBU | 16 channels (8 x AES3) at 48 or 96 kHz |
Interface
Specifications
| indicators | Status, signal and clip LEDs for MADI and AES/EBU inputs and outputs Clock Reference LEDs Mains, PoE, control and status LEDs |
| Connectors | Locking connectors for power, audio, network and clock |
| Additional ports | Terminal block for GPIO |
Remote control and monitoring
Specifications
| Network connection | Dual-port Ethernet Gigabit interface Milan seamless dual network redundancy Or AES67 seamless dual network redundancy |
| L-Acoustics remote control software | Embedded Web Server |
| General purpose inputs and outputs (GPIO) | 4 GPIO, isolated optocoupler input, isolated relay contacts on 10-point terminal block connector |
| Third-party management solutions | HTTP API |
Operating conditions
Specifications
| Temperature | -5º C / 23º F to +50º C / 122º F |
Features
Specifications
| Configurations | 10 User Configuration Memories |
Audio clock sources
Specifications
| Internal | 48 kHz or 96 kHz supported |
| Word Clock | Input and output on BNC connectors |
| Milan-AVB | CRF input and output streams Audio input and output streams |
| MADI | Input and output on BNC connectors |
| AES/EBU | AES/EBU Input 1 on DB25 connector |
Internal
Physical data
Specifications
| Height | 1U |
| Weight | 2 kg /4.41 lb |
| Protection rating | IP3x |
