Nightclubs​​

OMNIA Nightclub, Caesar’s Palace, Las Vegas

3500 Capacity
ARCS
KARA

Context


The Team

Hot Nightclub OMNIA at Las Vegas Caesar’s Palace Calls for Hot Sound

Conceptualized around the elements of opulent, classic design and modern technology, OMNIA Las Vegas Nightclub is a 75,000 square-foot, tri-level nightclub inside the Caesar’s Palace Las Vegas Hotel and Casino that offers DJs, dancing, plus bottle service, and Strip views. Guests can enjoy an interactive nightlife experience with the famed 22,000-pound kinetic chandelier, world-class service, and an unforgettable night with VIP tables that line every area of the sumptuous club and world-renowned DJs pumping the latest music out onto the dancefloor.

The Challenge

Audiotek of Dublin, Ireland, supervised the technical design and installation of the audio, video, and lighting systems throughout the Hakkasan Group’s venue. The audio systems design team included Audiotek’s owner and managing director, Frank Murray, sound engineer Chris Kmiec, technical director Len Bolger, and project logistics director Mags Morton, together with James Algate, Hakkasan Group’s VP of music. The OMNIA project required a cutting-edge sound system that would embrace and specify the most innovative products regardless of their origin, complexity, or cost.

The Solution

In the Heart of Omnia ultra-lounge—the Main Club, a quad arrangement of 12 ARCS II constant curvature speakers is focused on the dance floor, directly below a 65-foot-tall domed ceiling and a ten-ton “chandelier” of kinetic lighting and projection. The low-end is handled by a dozen SB28 dual-18-inch subwoofers, clustered together for greater coupling and positioned below the stage. On stage, two stacks, each comprising three Kara WST line source modules and two SB18 subs, deliver foldback to the DJs.

Twenty-six passive 12XTi coaxial speaker cabinets provide mezzanine and under-balcony fill. They are delayed back to the main dance floor to provide uninterrupted, even coverage throughout the massive space accommodating 3,500 patrons. Six ARCS Wide constant curvature speakers and four SB18 single-18-inch subs provide additional fill, also timed back to the main system at the club’s rear bar area. Nine LA8 and eight LA4X amplified controllers drive the entire main club system.

The Result

The team achieved results far beyond their greatest expectations, with the L-Acoustics kit delivering a sublime performance night after night for the DJs and clubbers. The uniform reaction of clubbers, performers, and management has been overwhelmingly positive for the Hakkasan Group’s venue.

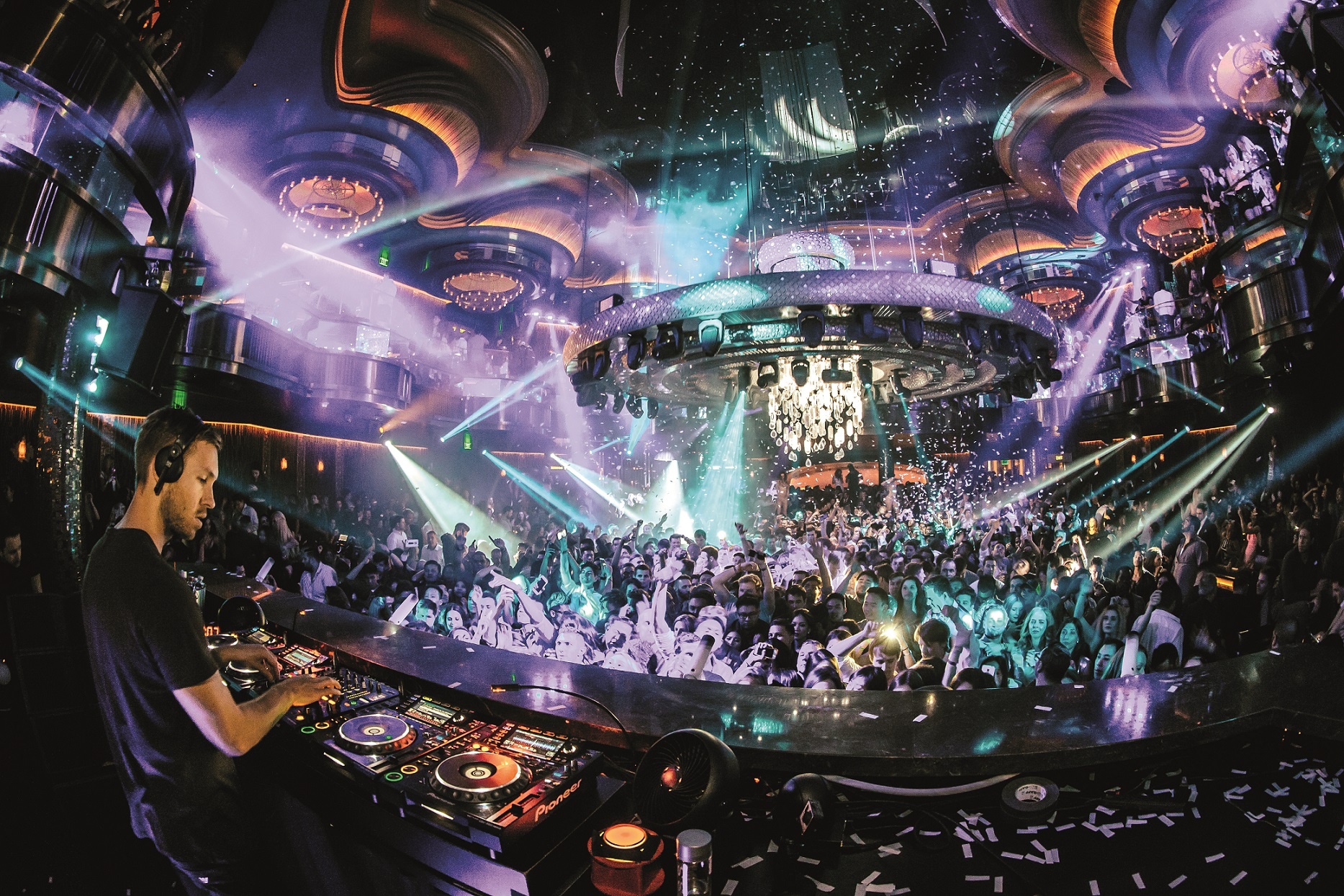

Project photos

Continually striving to be at the cutting edge of the technologies means embracing and specifying the most innovative products. For Omnia, the world’s premier dance club, that solution was L-Acoustics, and we are delighted to say that we have achieved a result far beyond our greatest expectations.

Frank Murray

Owner & Managing Director, Audiotek

Tech Brief

  • 48 ARCS II
  • Six ARCS Wide
  • 26 12XTi
  • 12 SB28
  • Four SB18
  • Nine LA8
  • Eight LA4X

Main System

KARA

ARCS II

SB28

KS28

Fills

ARCS Wide

12XTi

Electronics

LA8

LA4X
