Electroacoustic specs

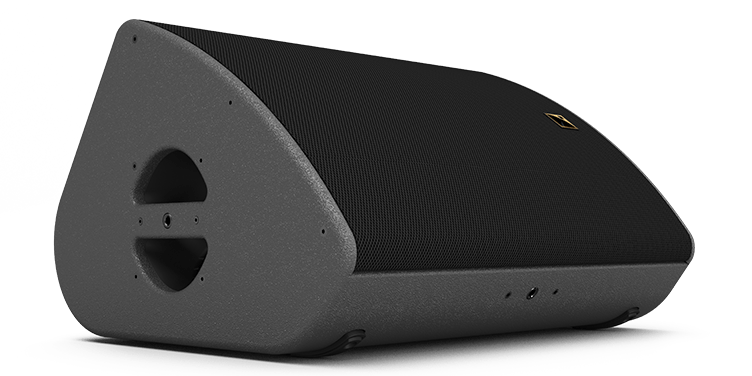

2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) | 55 Hz – 20 kHz ([X15]) |
Maximum SPL1 | 138 dB ([X15]) |
Nominal directivity (-6 dB) | vertical: 60° symmetric |
Monitor angle | without risers: 35° |
Transducers | LF: 1 × 15″ cone driver |
Acoustical load | load bass-reflex, L-Vents, ellipsoidal waveguide |
Nominal impedance | LF: 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors | IN: 1 × 4-point speakON |
Rigging and handling | 2 handles |
Weight (net) | 21 kg / 46.3 lb |
Cabinet | premium grade Baltic beech and birch plywood |
Front | steel with anti-corrosion coating |
Finish | dark grey brown Pantone 426 C |
IP | IP43 |
Dimensions
