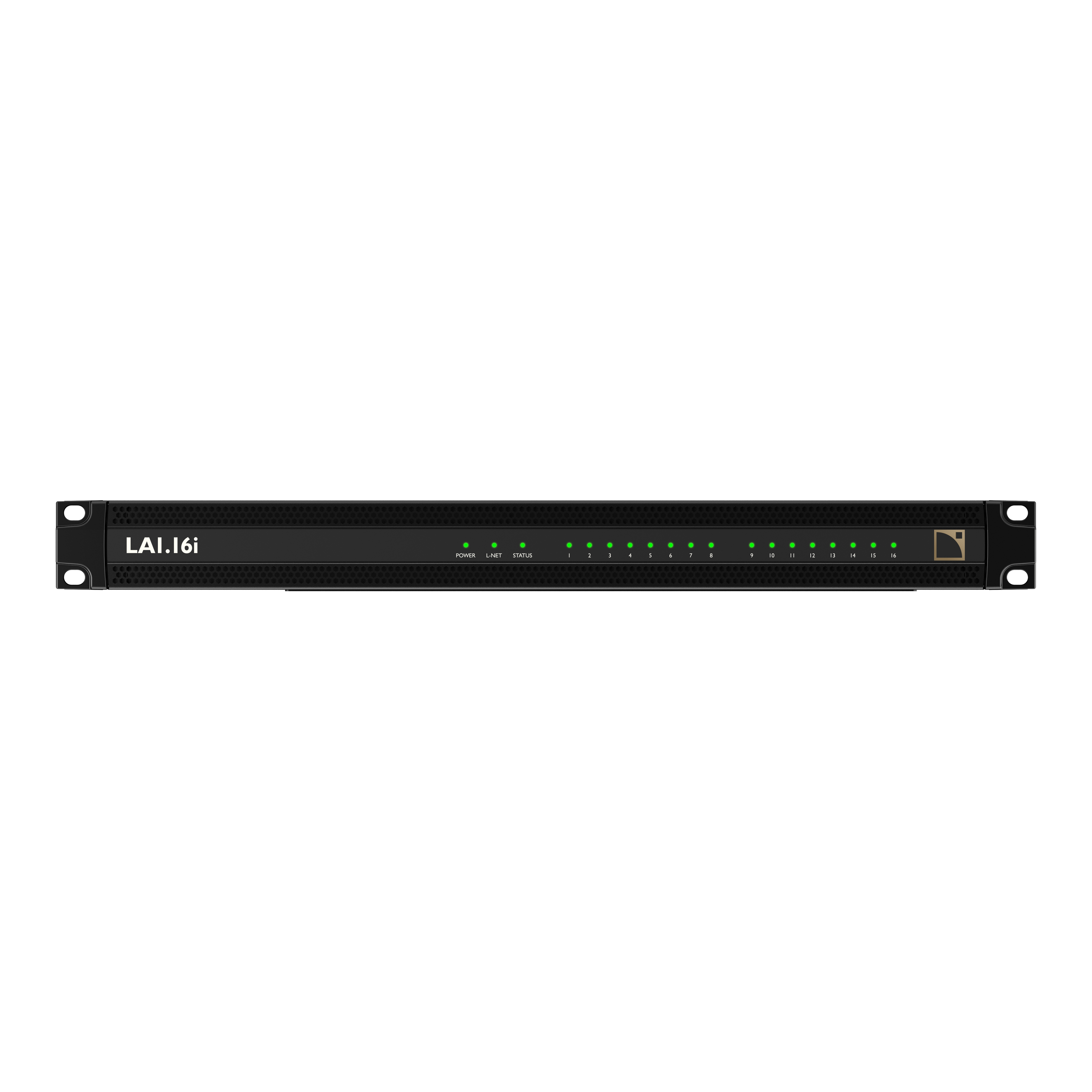

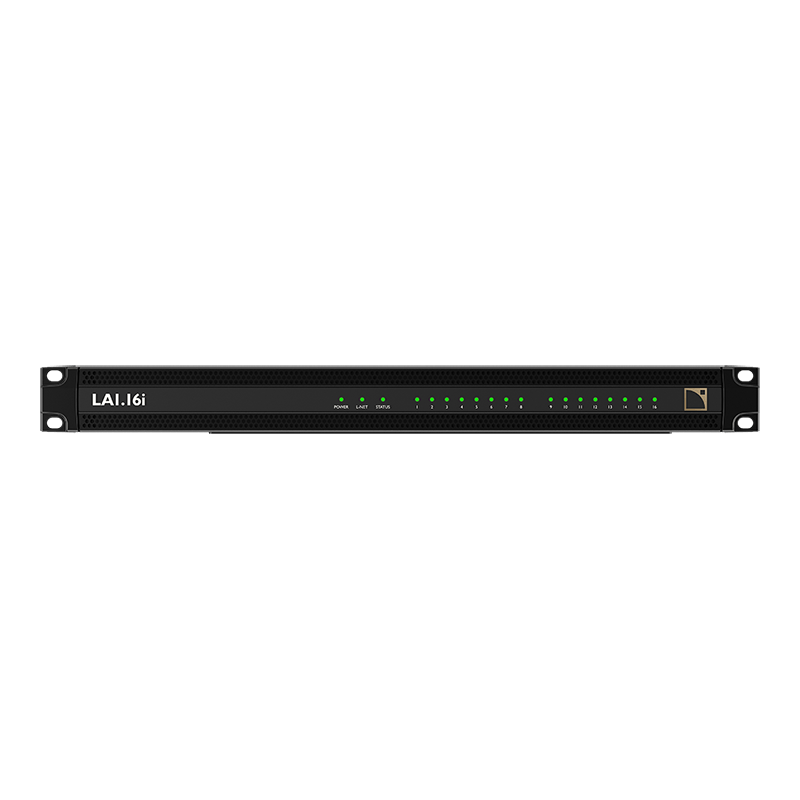

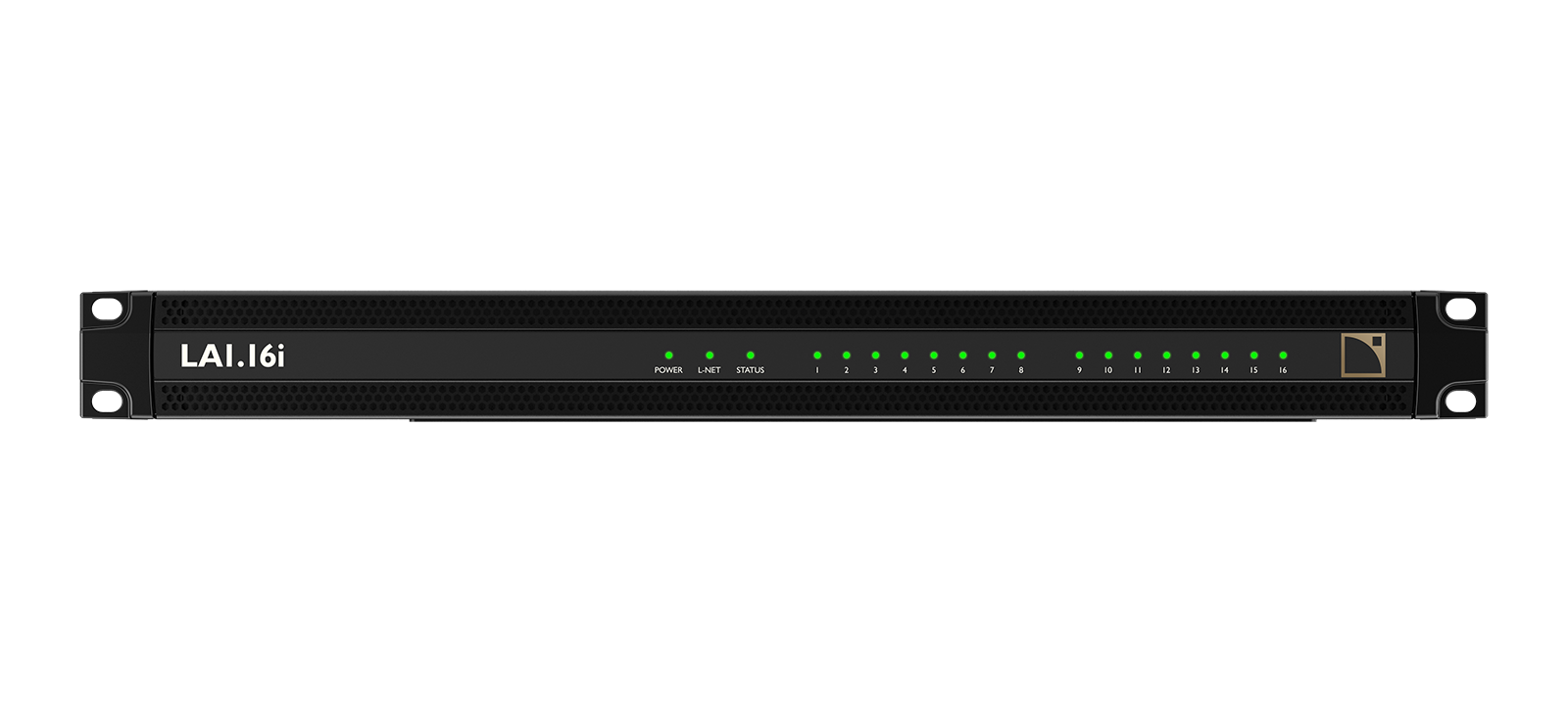

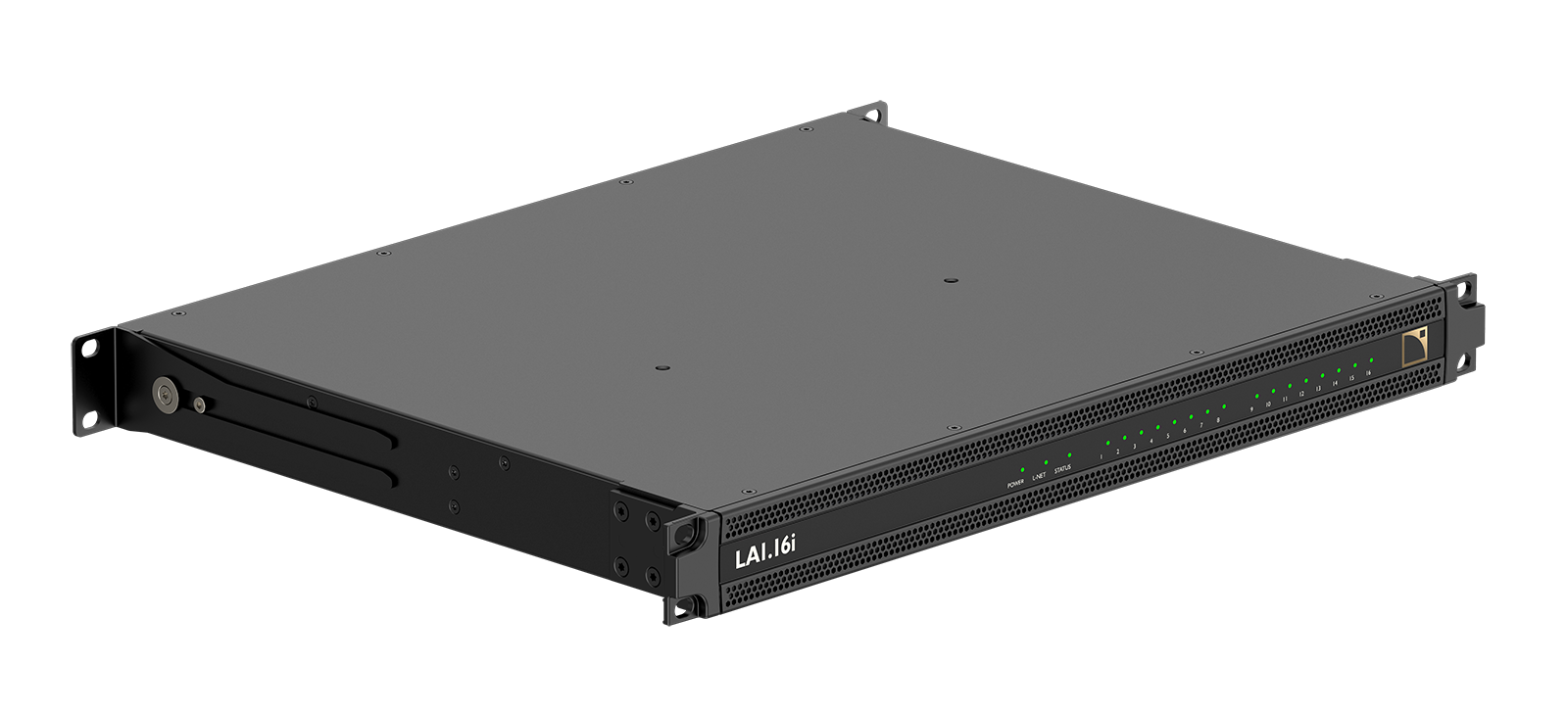

- Front

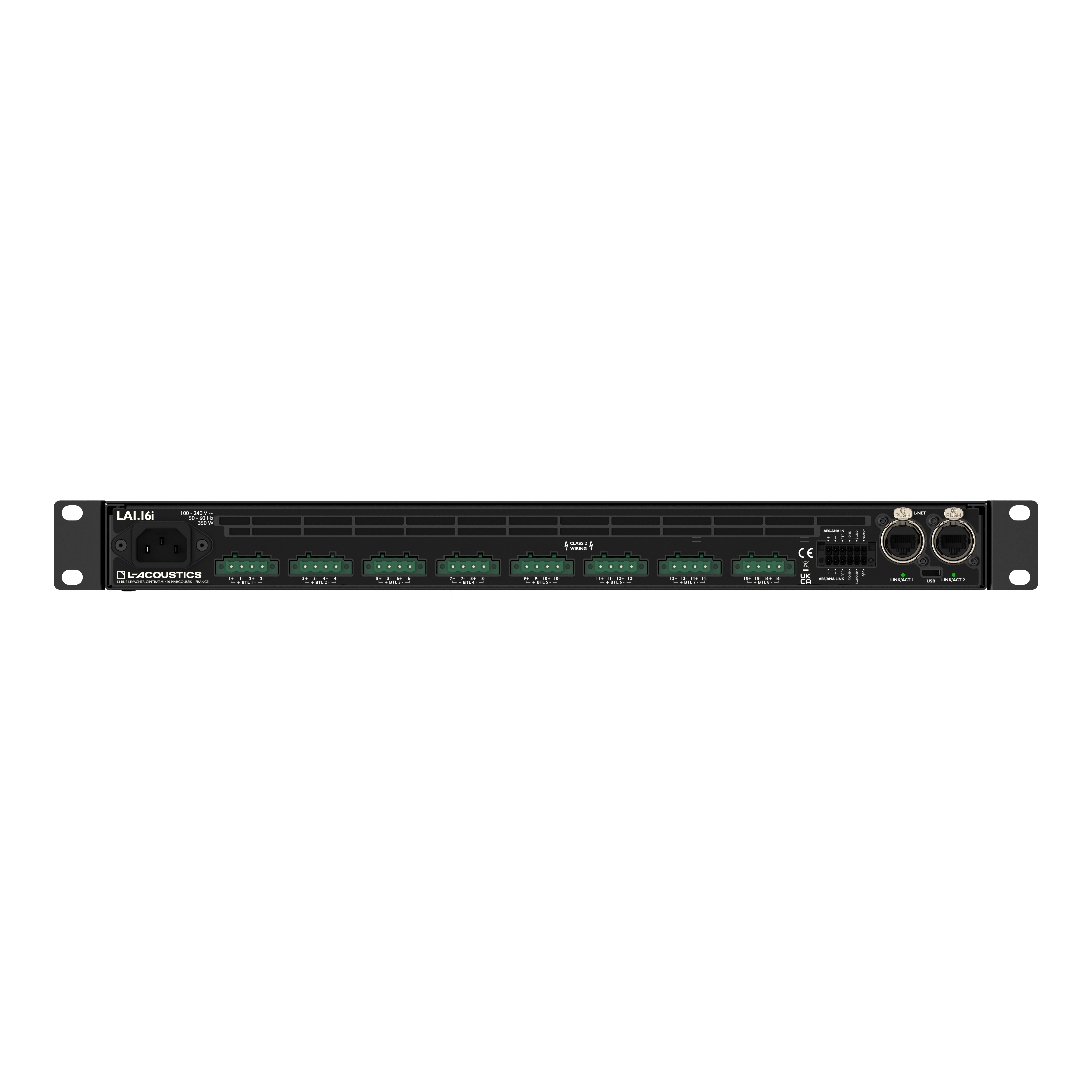

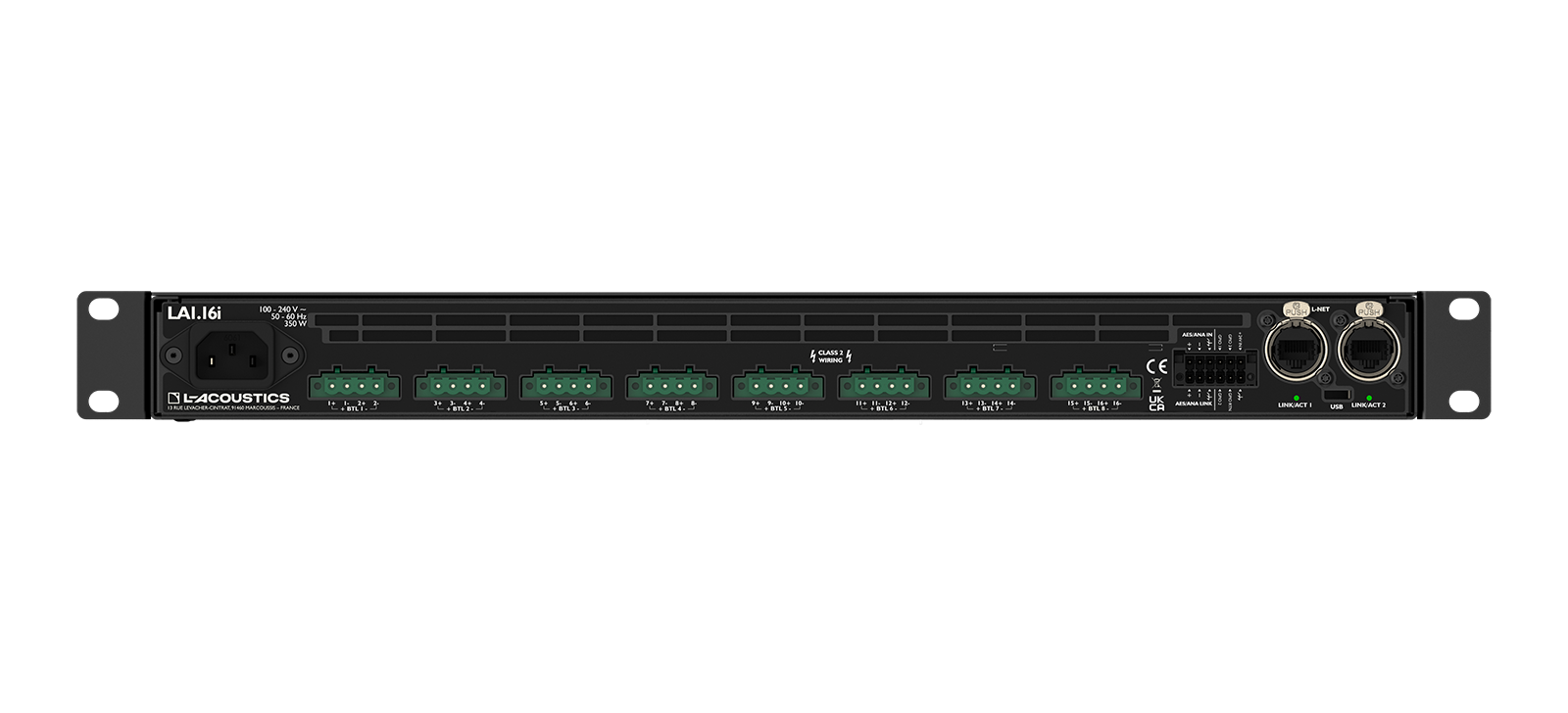

- Back
- Top
LA1.16i
Multi-channel amplified controller for install
| Architecture |
Single-ended (SE) mode: 16 x 16 Bridge (BTL) mode: From 16 x 15 to 16 x 8 |
| Output Power |
16 x 80 W at 8 ohms (SE) 16 x 160 W at 4 ohms (SE) 8 x 300 W at 8 ohms (BTL) |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB or AES67, AES/EBU, Analog |
| Network |
Milan-certified with seamless network redundancy AES67 with seamless redundancy |
Certification
Inspiration
Related Products
Need more information?
Check out our Documentation Center for more documents on this product.
Amplification and power supply
Specifications
| Amplification class | High-efficiency class D |
| Output power, all channels loaded | 16 x 80 W at 8 ohms 16 x 160 W at 4 ohms 8 x 300 W at 8 ohms |
| nominal power requirements | 10 A (220 - 240 V) 15 A (120 V) 20 A (100 V) |
| mains connector | IEC V-Lock compatible |
| Power supply model | Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
| Mains rating | 100 V - 240 V ± 10%, 50 Hz - 60 Hz |
| External DSP backup voltage input | 24 V DC |
DSP
Specifications
| Digital Signal Processor (DSP) | Gen.5 Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
| I/O routing | 16 x 16 routing and summation matrix |
| Per output channel | Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing (LF contour, zoom factor), Air absorption compensation filters Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses Output delay from 0 to 1000 ms |
Technologies
Specifications
| loudspeaker management | L-DRIVE advanced system protection |
| amplifier management | L-SMART adaptative power management |
Latency
Specifications
| standard latency (analog/digital inputs) | 3.84 ms |
| low latency (analog/digital inputs) | 1.18 ms |
Inputs
Specifications
| Milan-AVB | 16 channels from up to 16 streams (of up to 8 channels each) |
| AES67 | 16 channels from up to 16 streams (of up to 8 channels each) (48 kHz only) |
| AES/EBU | 2 channels AES/EBU (1 x AES3) with SRC |
| analog | 1 channel analog |
| connections | 2 etherCON 1 Gb/s I/O+ control 1 male 12-point terminal block (AES3 or Ana input/link + GPIO) |
Outputs
Specifications
| loudspeaker connections | 8 Female 4 point terminal blocks |
Circuits protection
Specifications
| Mains and power supply | Over and under voltage / over temperature / overcurrent |
| Power outputs | Overcurrent / DC / short circuit / over temperature |
Interface
Specifications
| Display | LED's only |
Remote control and monitoring
Specifications
| L-Acoustics remote control software | LA Network Manager |
| General purpose inputs and outputs (GPIO) | 3 in/out on 12 point terminal block |
| Third-party management solutions | Q-SYS® / Crestron® / HTTP / WebUI |
Operating conditions
Specifications
| Temperature | -5 °C / 23 °F to 50 °C / 122 °F |
Physical data
Specifications
| Height | 1U |
| Weight | 5.6 kg / 12.3 lb |
Dimensions
