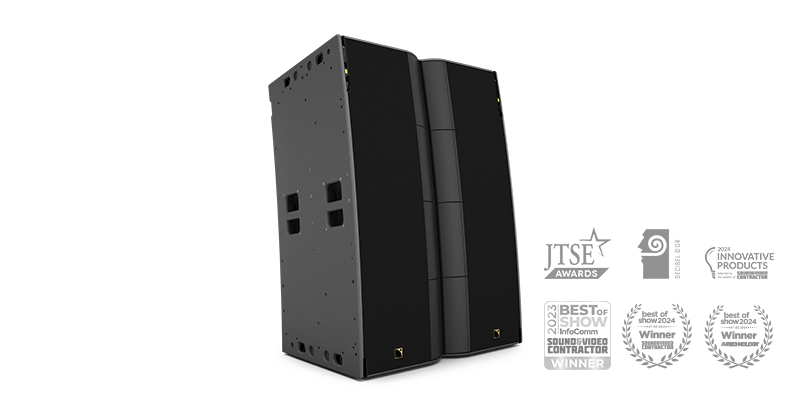

L2
The Sound. The Shape. The Future.
16-channel PULS for medium and large size events
| Max SPL | 155 dB |
| Bandwidth | 45 Hz- 20 kHz |
| Transducers | LC: 4 x 12" LF: 8 × 10’’ HF: 8 × 3’’ |
| Weight | 158 kg / 348 lb |
| Directivity | V: 10° H: Four modules Panflex:70° / 90° / 110° Integrated cardioid |
Inspiration
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
16-channel active progressive curvature WST®
amplified by LA7.16/LA7.16i
| Usable bandwidth (-10 dB) | 45 Hz – 20 kHz ([L2 70]) |
| Maximum SPL1 | Full element: 155 dB ([L2 70] First module: 147 dB ([L2 70]) |
| Nominal directivity (-6 dB) | vertical: 10° progressive directivity horizontal: |
| Transducers | LC: 4 × 12’’ neodymium cone drivers |
| Acoustical load | LC/LF: Bass-reflex, L-Vents |
| Nominal impedance | LC : 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 x 37-point male connector (32 points used) |
| Rigging and handling | flush-fitting 4-point captive rigging system compatible with L2D |
| Dimensions | 850 mm (33.5 in) / 1197 mm (47.2 in) / 559 mm (22 in) |
| Weight (net) | 158 kg / 348 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Rigging components | high grade steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
