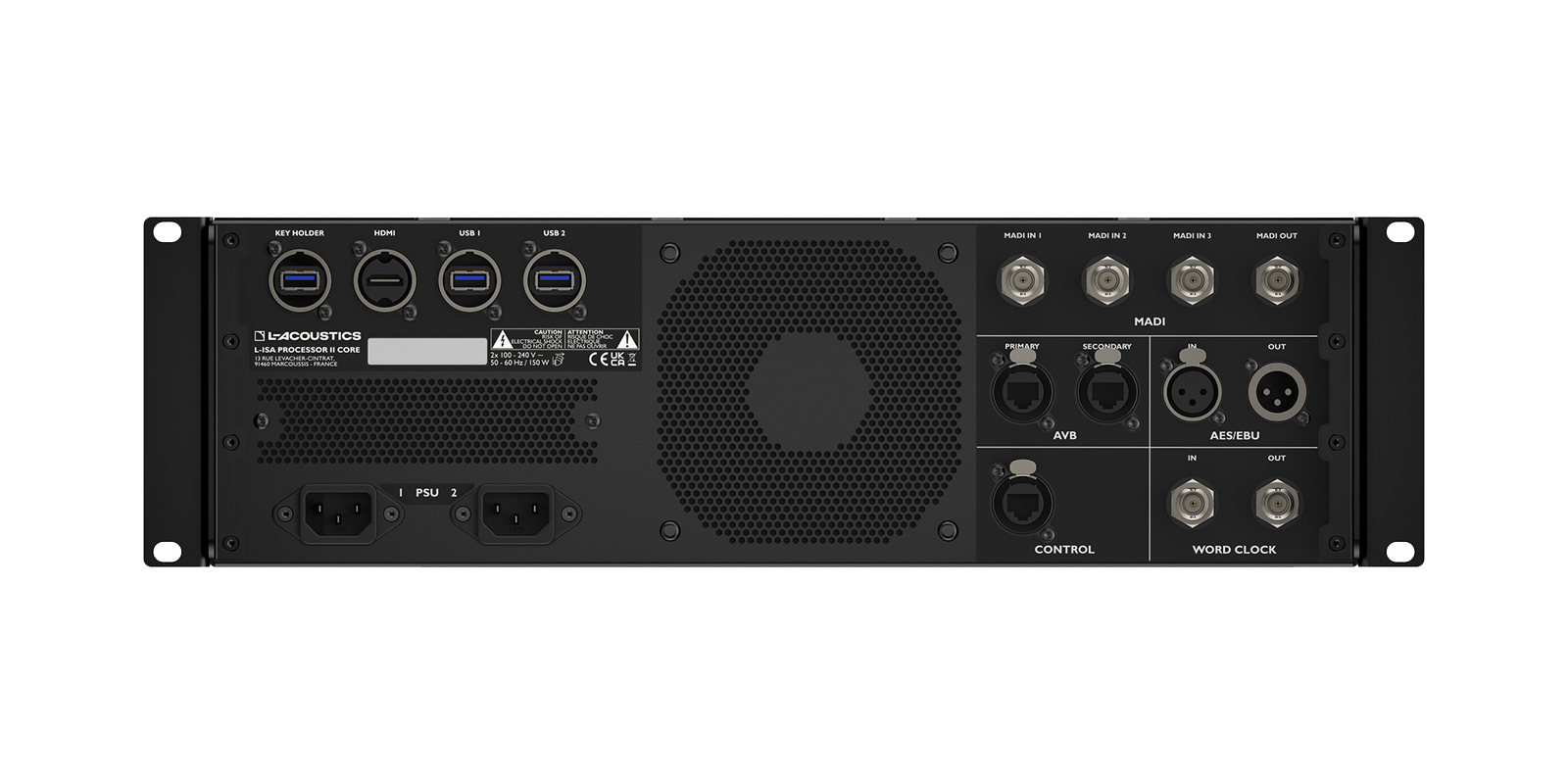

- Back
- Side
L-ISA Processor II Core
Multipurpose audio processor
| Architecture | Up to 128 x 128 at 96 kHz |
| Power supply | 2x Redundant Universal SMPS |
| Inputs |
64 AVB channels 96 MADI channels (96 kHz) 2 AES/EBU channels |
| Outputs |
128 AVB channels 32 MADI channels (96 kHz) 2 AES/EBU channels Stereo headphones |
| Sync sources |
Word clock Milan-AVB or CRF MADI AES/EBU |
| Height | 3U |
Source Intelligence
More freedom for performers. More clarity for engineers.
L-Acoustics DJ
Move Your Music, Amplify Their Emotion.
L-ISA Hyperreal
Hear the Connection. Feel the Sound.

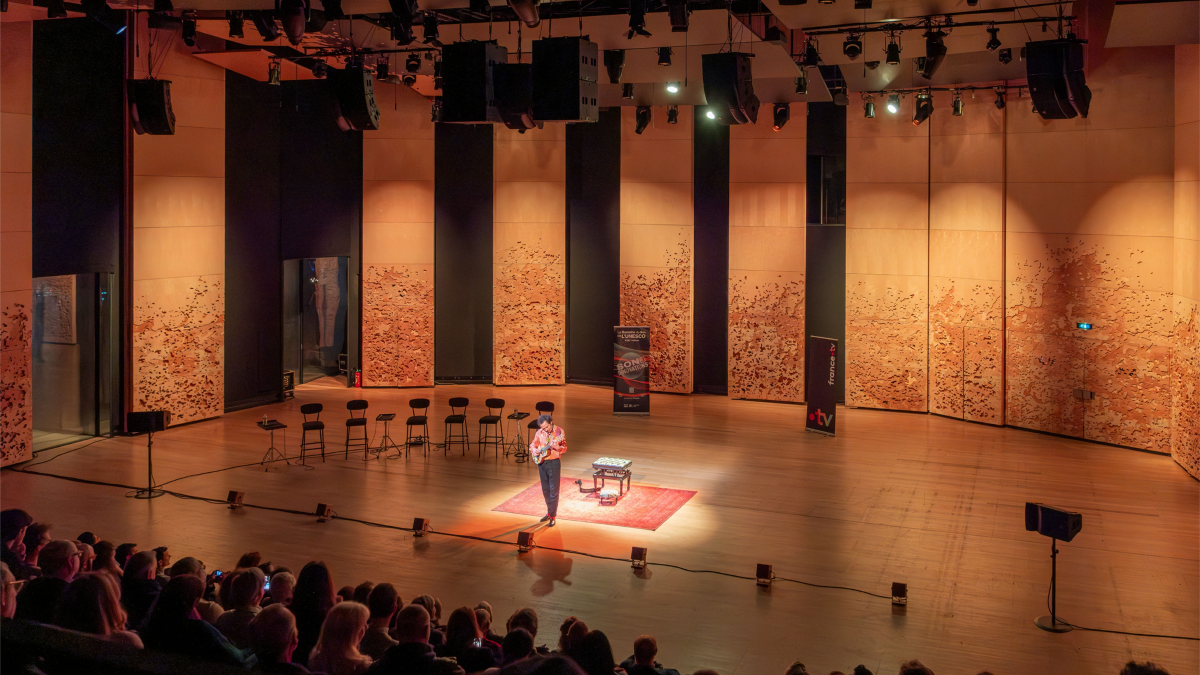

L-ISA Immersive
Experience Sound Without Limits
Ambiance
Connecting Sound & Space
HYRISS
One Space. Endless Experiences.
Need more information?
Check out our Documentation Center for more documents on this product.
Power supply
| model | Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
| Mains rating | Redundant power supplies: 2 x 100 V - 240 V AC 350 W |
DSP
| L-ISA Processing at 96 kHz | 96 objects rendered to a maximum of 128 outputs (depending on license pack) L-ISA parameters: Pan, Width, Distance, Elevation, Aux Send Room engine |
| Direct audio routing | Audio format conversion MADI to AVB or AVB to MADI AVB to AVB stream multiplexing |
| Latency | 3,2 ms |
| Boot time to AVB audio pass through | 31 s |
Inputs
| Milan-AVB | 64 AVB channels (8 redundant streams of up to 8 channels) 2 x etherCON Gigabit ports for Milan-AVB primary and secondary |
| AES/EBU | 2 channels (1xAES3) at 44.1, 48 or 96 kHz 1 x XLR female connector |
| MADI | 192 channels at 44,1 or 48 kHz / 96 channels at 96 kHz 3 x BNC connectors |
Outputs
| Milan-AVB | 128 AVB channels (16 redundant streams of up to 8 channels) 2 x etherCON Gigabit ports for AVB primary and secondary |
| MADI | 32 outputs at 96 kHz or 64 channels at 44.1 or 48 kHz 1 x BNC connector |
| AES/EBU | 2 channels (1xAES3) at 44.1, 48 or 96 kHz 1 x XLR male connector |
| headphones | Analog stereo headphones 6.3 mm TRS |
Interface
| indicators | Power and status LEDs |
| Connectors | Locking connectors for power, audio, network and clock |
| Additional ports | 2 x USB, 1 x HDMI port, 1 key holder for backup boot system |
Remote control and monitoring
| Network connection | Ethernet Gigabit interface |
| L-Acoustics remote control software | L-ISA Controller |
| Third-party remote control | HTTP-based control platforms |
| Third-party interoperability | DeskLink and Control plugin for integration in mixing consoles Control plugins for Digital Audio Workstations OSC compatibility for show control, media engine and creative control environment PosiStageNet and RTTrPM protocols for tracking systems integration |
Operating conditions
| Temperature | -5º C / 23º F to +50º C / 122º F |
Features
| Room engine | Multi-channel 3D processing to create virtual acoustic spaces |
| Source Input Delay | Static or dynamic delay to correctly align the natural signal to the amplified one. |
| Spatial fills | Multi-channel algorithm for better audio-visual consistency of fill systems |
| Snapshot engine | Trajectories for mono, stereo or group of objects |
| Scale simulation | Listening from any virtual position within the audience area to assess the mix |
| Binaural | Immersive audio on headphones |
| Stereo Mix Compatibility | Mix from standard stereo buses to an L-ISA deployment |
| Configurations | Recall session configurations from 3rd party devices |
Audio clock sources
| Word Clock | Input and output on BNC connectors |
| Milan-AVB | CRF input and output streams Audio input and output streams |
| MADI | Input and output on BNC connectors |
| AES/EBU | Input on XLR connector |
Physical data
| Height | 3U |
| Weight | 11 kg / 24.3 lb |
| Protection rating | IP20 |
Dimensions
