Electroacoustic specs

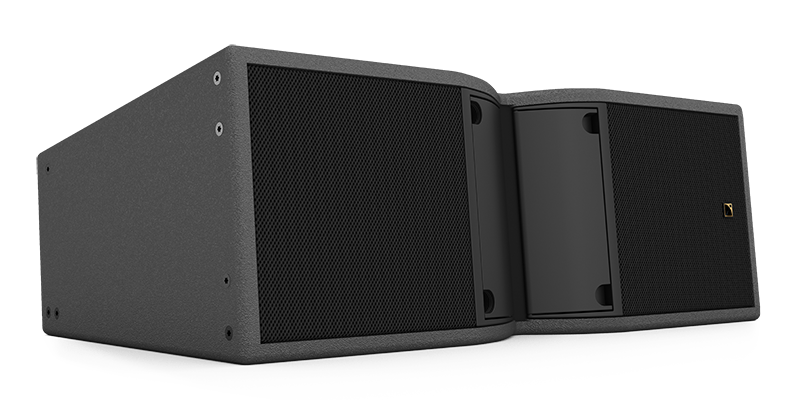

2-way active WST® enclosure (installation version)
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 55 Hz – 20 kHz ([KARA II 70]) |
| Maximum SPL1 | 142 dB ([KARA II 70]) with LA4X / LA8 / LA12X |
| Nominal directivity (-6 dB) | horizontal: 70° / 110° symmetric or 90° asymmetric |
| Transducers | LF: 2 × 8″ neodymium cone drivers |
| Acoustical load | LF: bass-reflex |
| Nominal impedance | LF: 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 2 × 4-point terminal block with push-in connection |

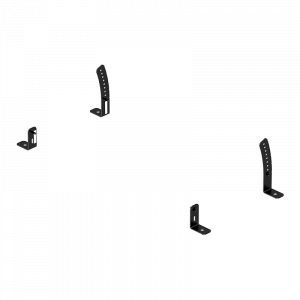

| Rigging and handling | external rigging kits |
| Dimensions | 701 mm (27.6 in) / 252 mm (9,9 in) / 403 mm (15.9 in) |
| Weight (net) | 21 kg / 46 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
