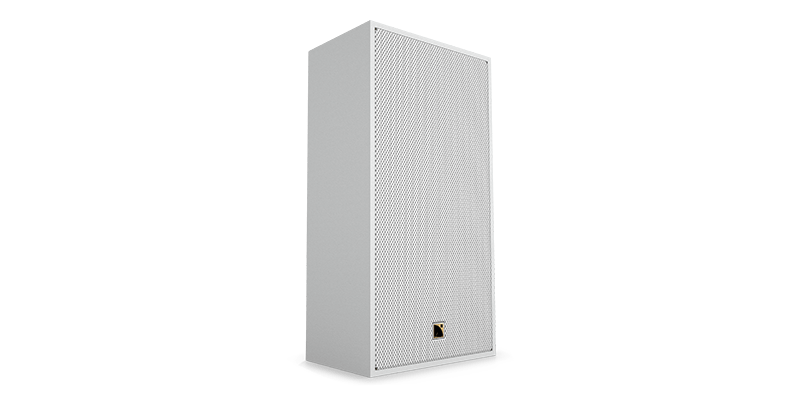

- Front

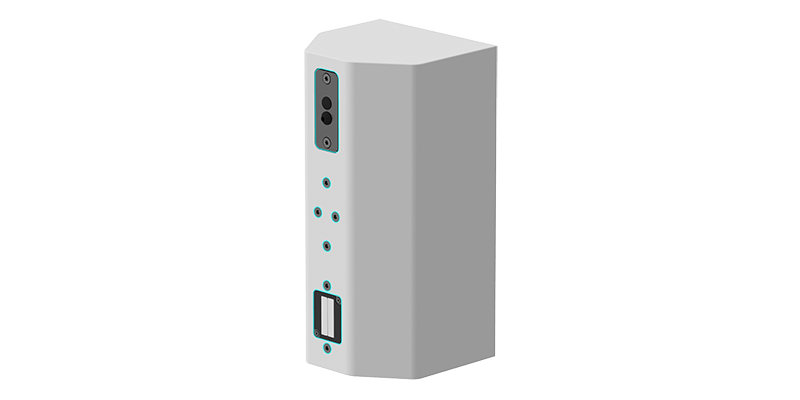

- Back
- White
X6i
eXpanding horizons
2-way passive, 6.5"
POINT SOURCE
COAXIAL
L-VENTS
| Max SPL | 123 dB ([X6i preset]) |
| Bandwidth | 54 Hz- 20 KHz ([X6i_50 preset]) |
| Transducers | LF : 1 x 6.5" HF : 1 x 1.5" |
| Weight | 6.3 kg / 14 lb |
| Directivity | H: 90° V: 90° |
Related Products
Need more information?
Check out our Documentation Center for more documentations on this product.
Electroacoustic specs
2-way passive coaxial enclosure
amplified by LA7.16i / LA2Xi / LA4X / LA12X
| Usable bandwidth (-10 dB) | 69 Hz – 20 kHz ([X6i preset]) 54 Hz – 20 kHz ([X6i_50 preset]) |
| Maximum SPL1 | 123 dB ([X6i preset]) 117 dB ([X6i_50 preset]) |
| Nominal directivity (-6 dB) | 90° axisymmetric |
| Monitor angle | 35°/55° |
| Transducers | LF: 1 × 6.5″ cone driver |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | IN: 1 × 2-point terminal block LINK: 1 × 2-point terminal block |
| Rigging and handling | 8 M6 inserts |
| Weight (net) | 6.3 kg / 14 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
