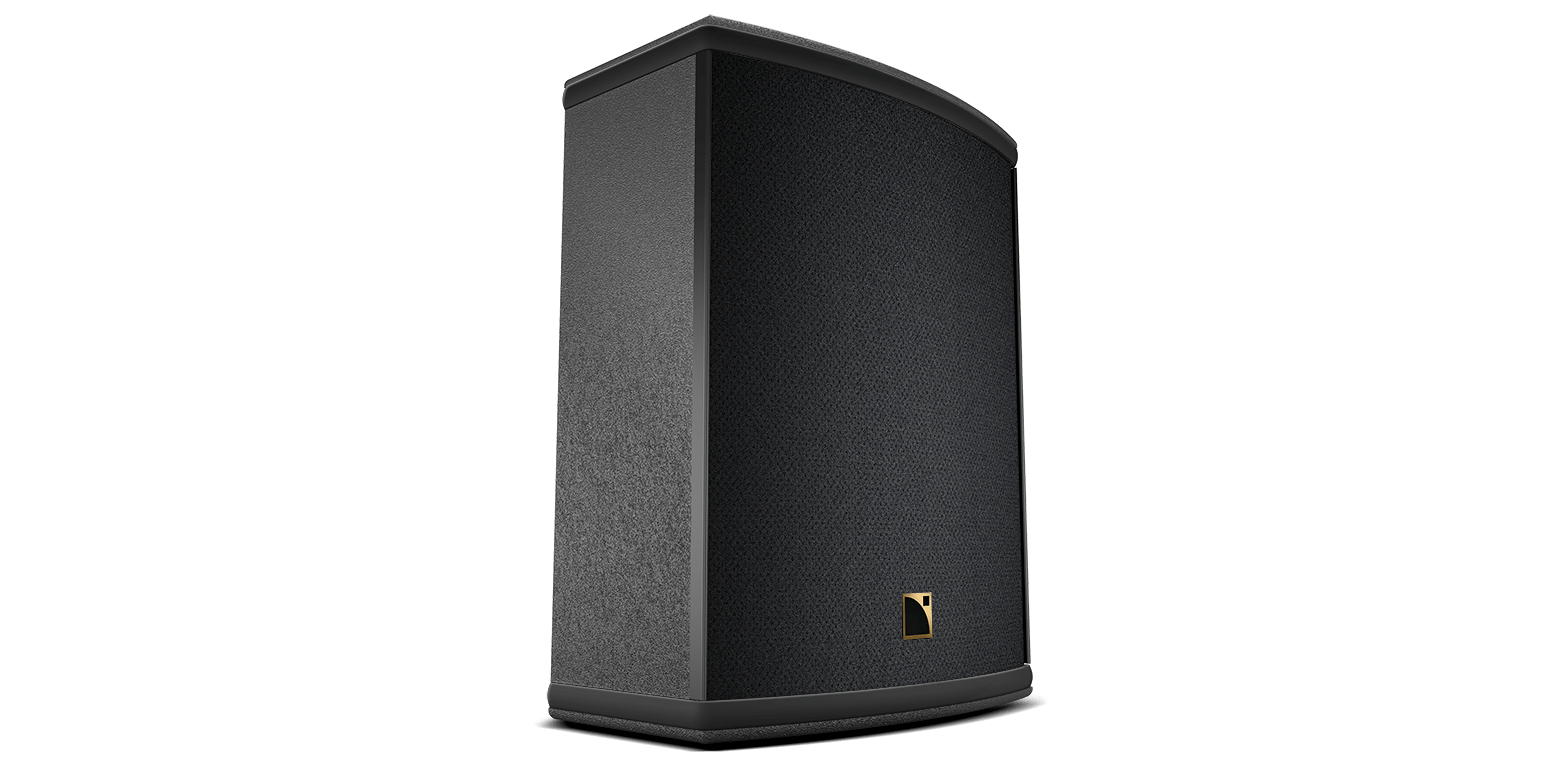

112P
Effortless logistics
Self-powered, passive 2-way, 12''
POINT SOURCE
COAXIAL
| Max SPL | 133 dB |
| Bandwidth | 50 Hz- 20 KHz |
| Transducers | LF : 1 x 12" HF : 1 x 3" |
| Weight | 32 kg / 71 lb |
| Directivity | H: 90° V: 90° |
Need more information?
Check out our Documentation Center for more documentations on this product.
Electroacoustic specs
Self-powered coaxial loudspeaker
| Usable bandwidth (-10 dB) | 50 Hz – 20 kHz ([112P_FR]) |
| Maximum SPL1 | 133 dB ([112P_FI]) |
| Nominal directivity (-6 dB) | 90° axi-symmetric |
| Monitor angle | 30° |
| Transducers | LF: 1 × 12″ cone driver |
| Acoustical load | LF: bass-reflex |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Electronics specs
| Mains | 120V/240V switchable, 2x Powercon® (IN & LINK) |
| Input stage | 10 kΩ, balanced, max level of +12 dBu (at 0 dB gain setting) |
| DSP | 24 bit / 48 kHz |
| Amplified power rating | 1000 W, 8 ohms |
| Gain control | Potentiometer, from –∞ to +6 dB |
| Indicators | LEDs for clip, signal and preset |
Physical specs
| Connectors | IN: 1 × 3-point XLR |
| Rigging and handling | 2 x integrated handles 1 x 35 mm (1.38 in) diameter pole mount socket |
| Weight (net) | 32 kg / 72.5 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | steel with anti-corrosion coating |
| Finish | grey brown RAL 8019 |
| IP | IP30 |
Dimensions
