Long Throw

K SERIES

The Industry Benchmark
KIVA II KIVA II ~ illustration
KARA II KARA II ~ illustration
KARA IIi
  • Fixed Install
KARA IIi ~ illustration
K3 K3 ~ illustration
K3i
  • Fixed Install
K3i ~ illustration
K2 K2 ~ illustration
K1 K1 ~ illustration
K1-SB K1-SB ~ illustration

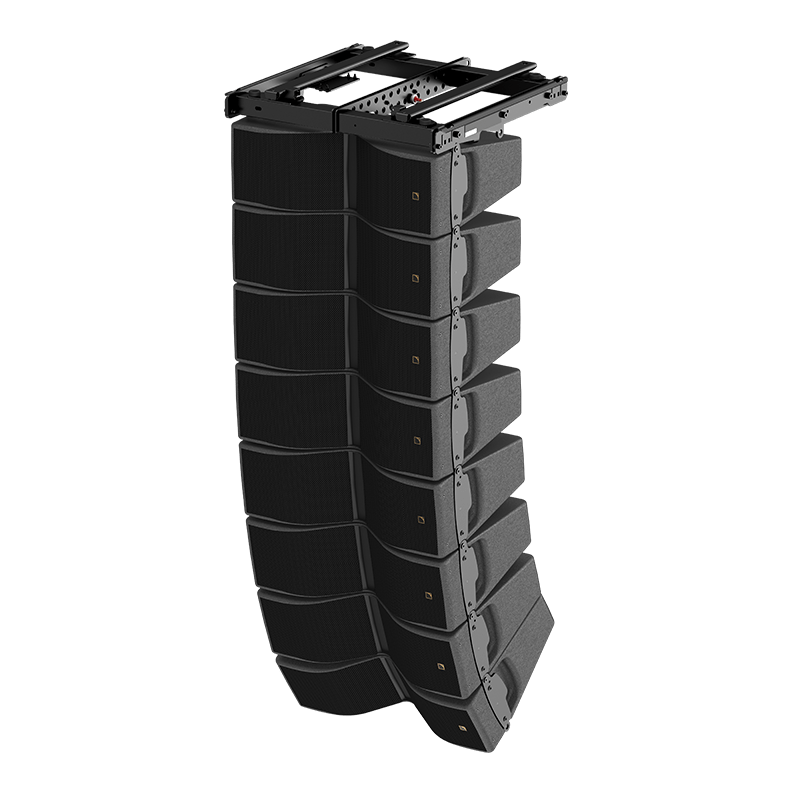

KIVA II

KIVA II

2-way passive, dual 6.5"
Max SPL 138 dB
Bandwidth 70 Hz- 20 KHz
Directivity H: 100°
V: 15°
Dimensions
(width/height/depth) 		525  mm ( 20.5 in) / 202 mm (8 in) / 357 mm (14 in)
Discover
KARA II

KARA II

2-way active, dual 8"
Max SPL 142 dB
Bandwidth 55 Hz- 20 KHz
Directivity H: 70° / 90° / 110°
V: 10°
Dimensions
(width/height/depth) 		733 mm (28.9 in) / 252 mm (9,9 in) / 500 mm (19.7 in)
Discover

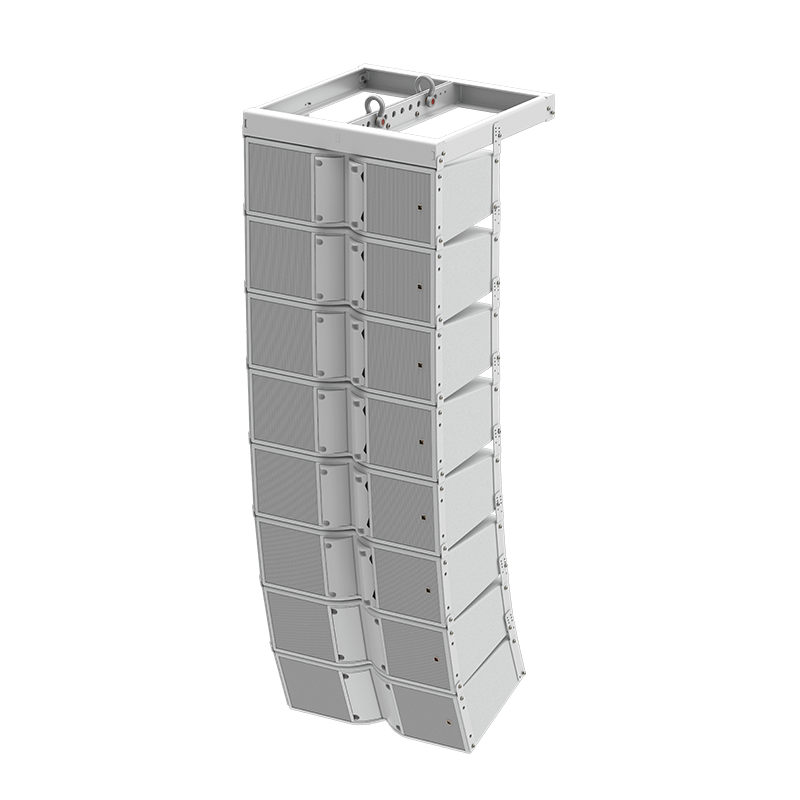

KARA IIi

KARA IIi

  • Fixed Install
    • 2-way active, dual 8"
    Max SPL 142 dB
    Bandwidth 55 Hz- 20 KHz
    Directivity H: 70° / 90° / 110°
    V: 10°
    Dimensions
    (width/height/depth)     		701 mm (27.6 in) / 252 mm (9,9 in) / 403 mm (15.9 in)
    Discover
    K3

    K3

    2-way active, dual 12"
    Max SPL 143 dB
    Bandwidth 42 Hz- 20 KHz
    Directivity H: 70° / 90° / 110°
    V: 10°
    Dimensions
    (width/height/depth)     		950 mm (37.4 in) / 357 mm (14 in) / 403 mm (15.9 in)
    Discover

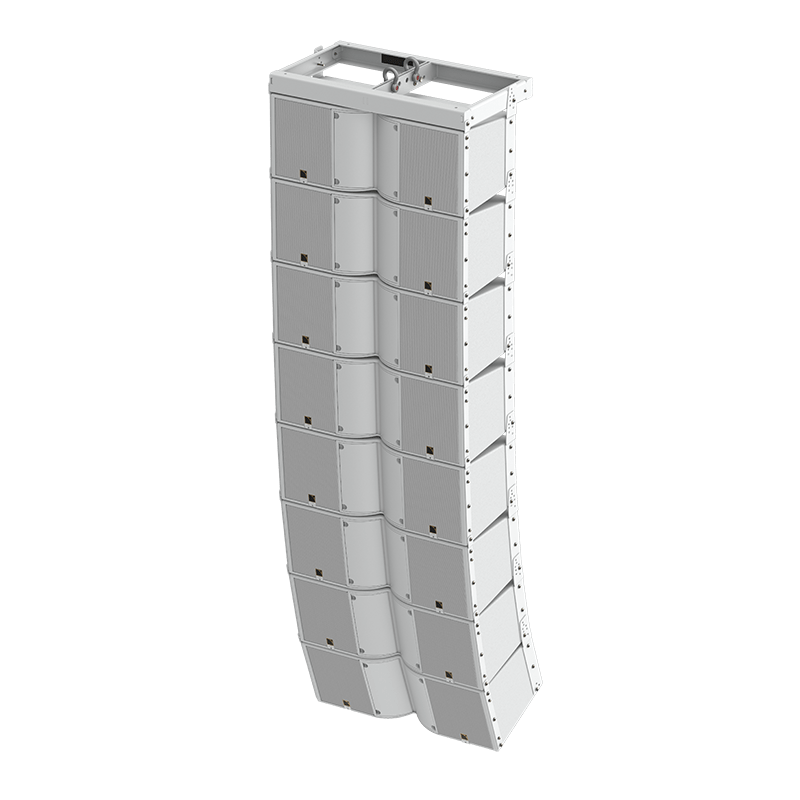

    K3i

    K3i

  • Fixed Install
    • 2-way active, dual 12"
    Max SPL 143 dB
    Bandwidth 42 Hz- 20 KHz
    Directivity H: 70° / 90° / 110°
    V: 10°
    Dimensions
    (width/height/depth)     		907 mm (35.7 in) / 357 mm (14.1 in) / 429 mm (16.9 in)
    Discover

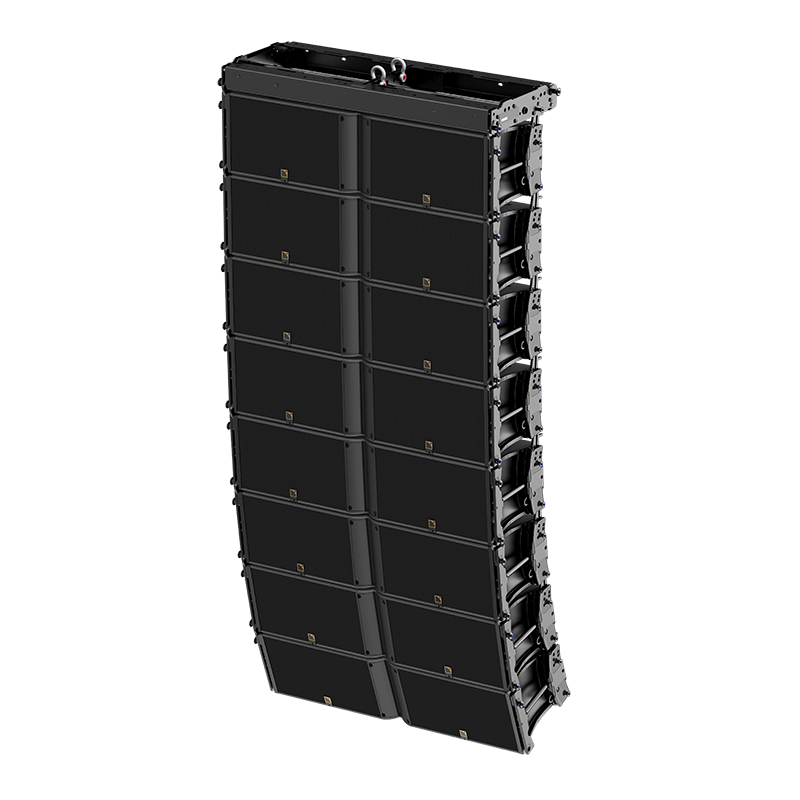

    K2

    K2

    3-way active, dual 12"
    Max SPL 147 dB
    Bandwidth 35 Hz- 20 KHz
    Directivity H: 70° / 90° / 110°
    V: 10°
    Dimensions
    (width/height/depth)     		1338 mm (52.7 in) / 354 mm (13.9 in) / 400 mm (15.8 in)
    Discover

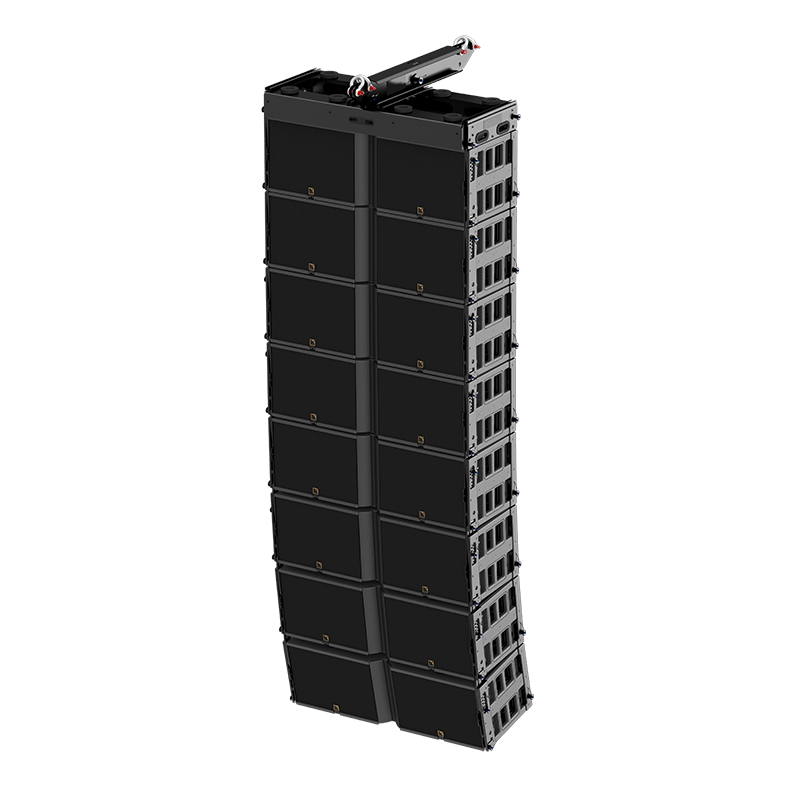

    K1

    K1

    3-way active, dual 15"
    Max SPL 149 dB
    Bandwidth 35 Hz- 20 KHz
    Directivity H: 90°
    V: 5°
    Dimensions
    (width/height/depth)     		1342 mm (52.8 in) / 438 mm (17.2 in) / 520 mm (20.5 in)
    Discover

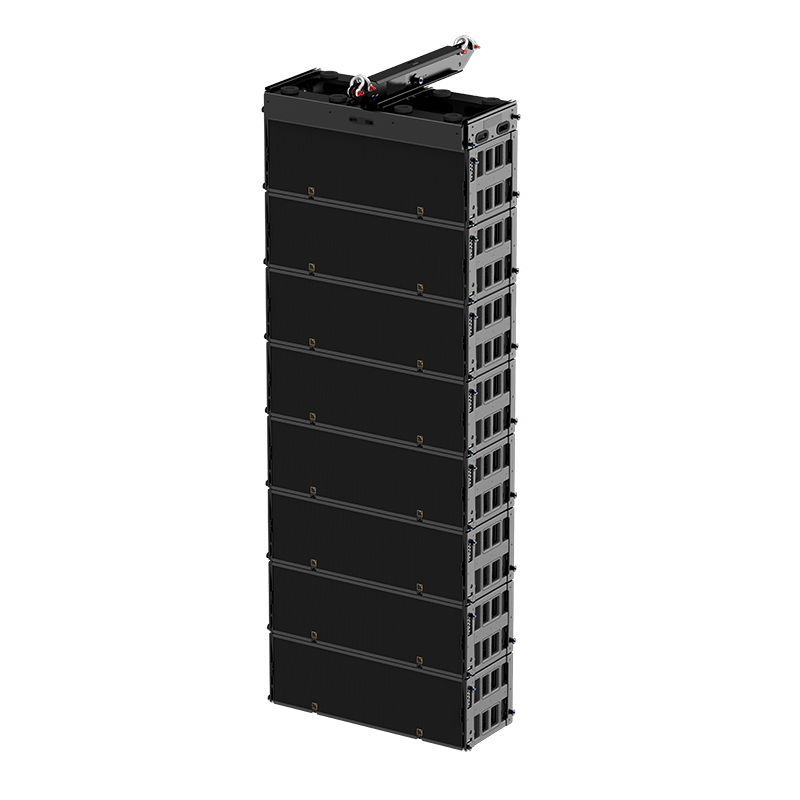

    K1-SB

    K1-SB

    Bass-reflex, dual 15''
    Max SPL 145 dB
    Bandwidth 30 Hz
    Directivity Standard
    Dimensions
    (width/height/depth)     		1342 mm (52.8 in) / 438 mm (17.2 in) / 520 mm (20.5 in)
    Discover
