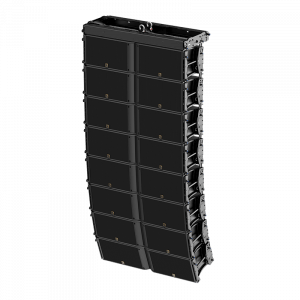

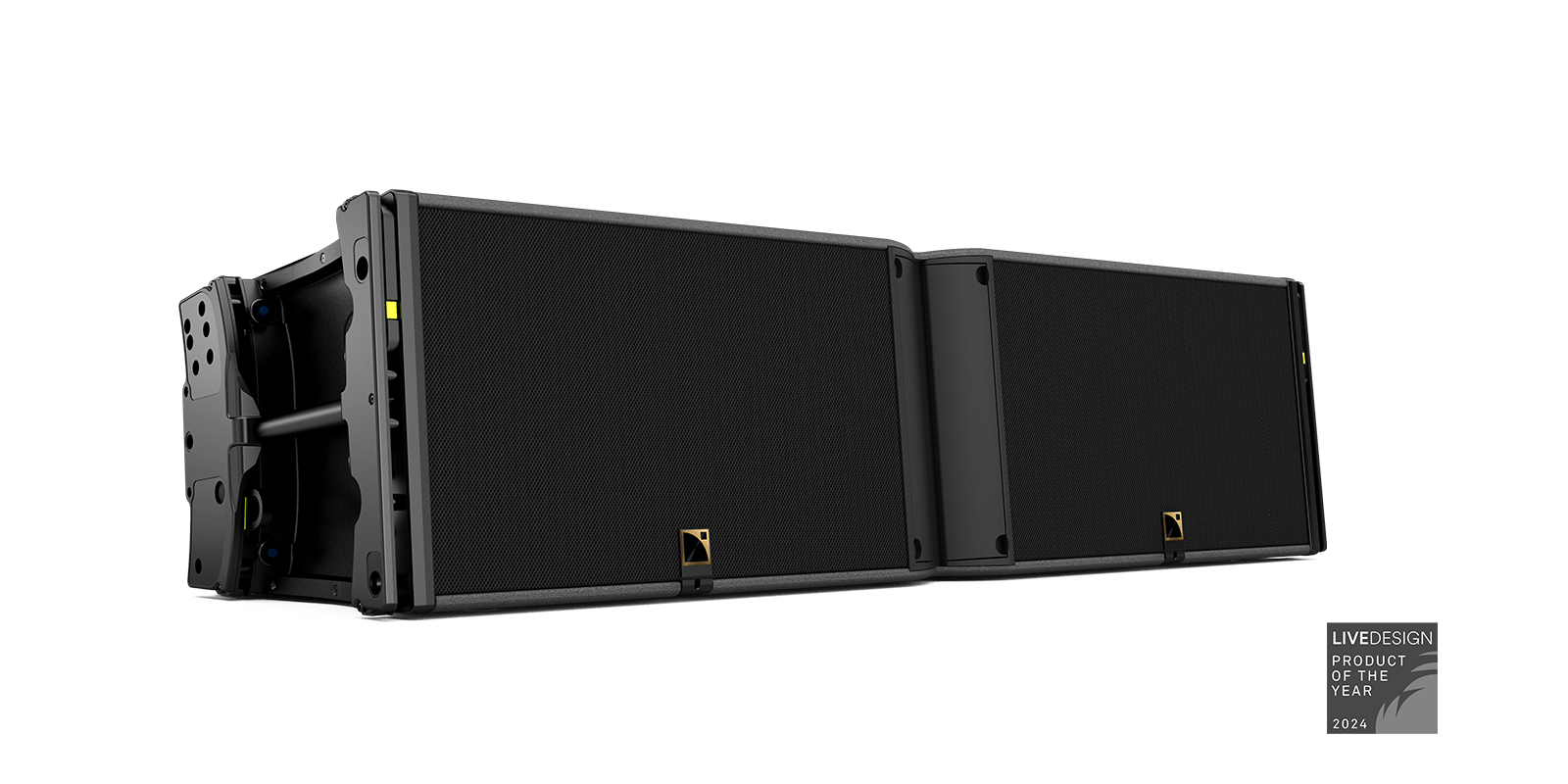

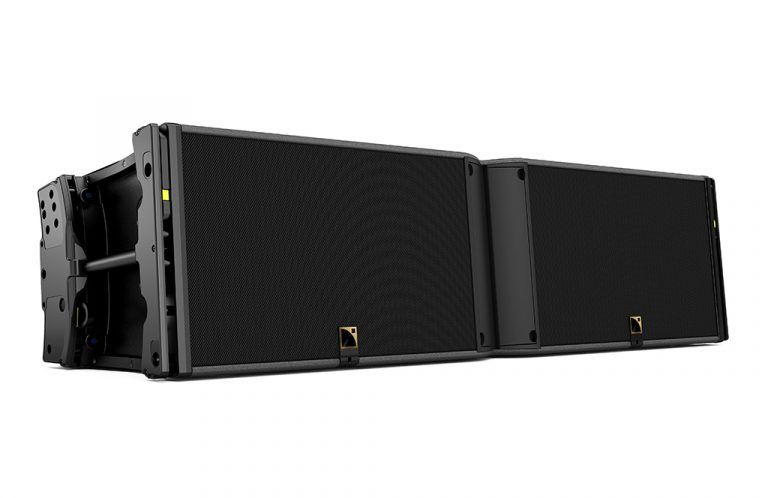

K2
Lightweight heavyweight
3-way active, dual 12"
| Max SPL | 147 dB |
| Bandwidth | 35 Hz- 20 KHz |
| Transducers | LF : 2 x 12" MF : 4 x 6.5" HF : 2 x 3" |
| Directivity | H: 70° / 90° / 110° V: 10° |
| Dimensions
(W x H x D) |
1338 mm (52.7 in) / 354 mm (13.9 in) / 400 mm (15.8 in) |
| Weight | 56 kg / 123 lb |

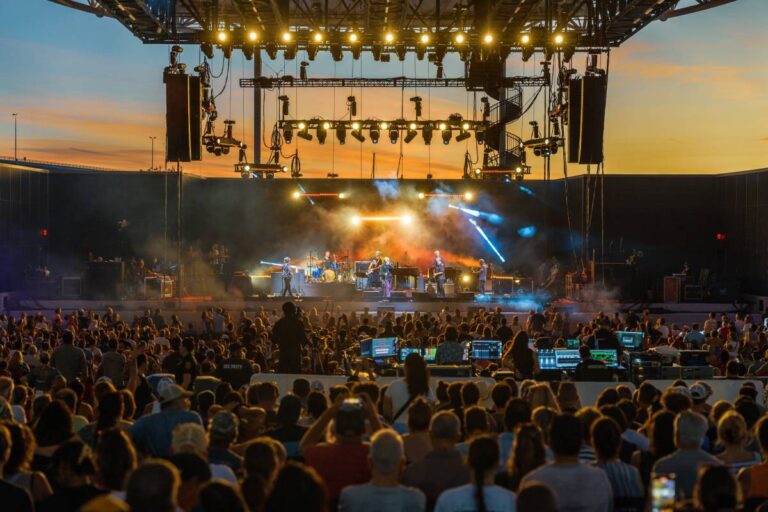

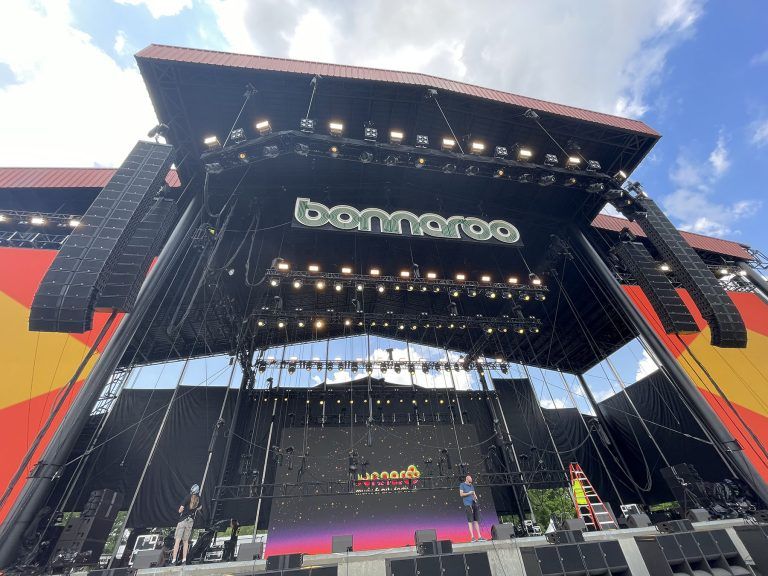

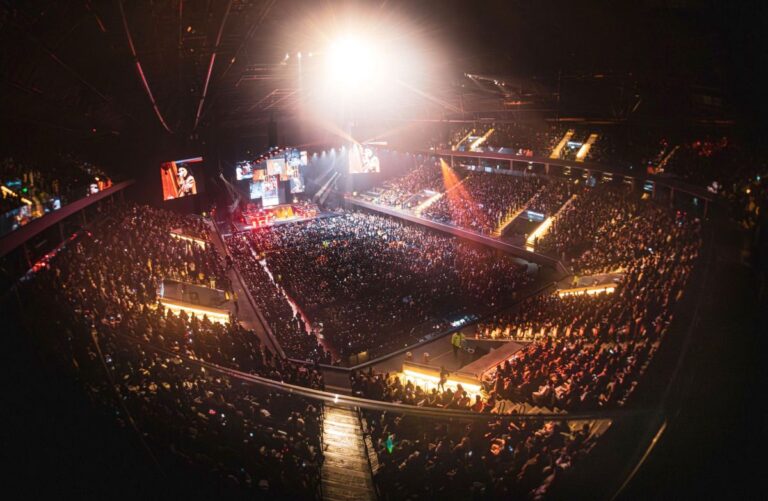

Inspiration
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
3-way active full-range WST® enclosure

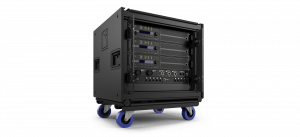

quad-amplified by LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 35 Hz – 20 kHz ([K2 70]) |
| Maximum SPL1 | 147 dB (preset [K2_70]) |
| Nominal directivity (-6 dB) | Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°) |
| Transducers | LF: 2 × 12″ cone drivers |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | LF : 2 x 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 2 x 8-point PA-COM |

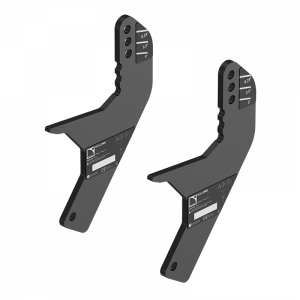

| Rigging and handling | Captive 4-points rigging system |
| Dimensions | 1338 mm (52.7 in) / 354 mm (13.9 in) / 400 mm (15.8 in) |
| Weight (net) | 56 kg / 123 lb |
| Cabinet | Premium grade Baltic birch plywood |
| Front | Coated steel grill |
| Side | Die cast aluminium |
| Rigging components | High grade steel with anti-corrosion coating |
| Finish | Dark grey brown – Pantone 426 C |
| IP | IP55 |
Dimensions
