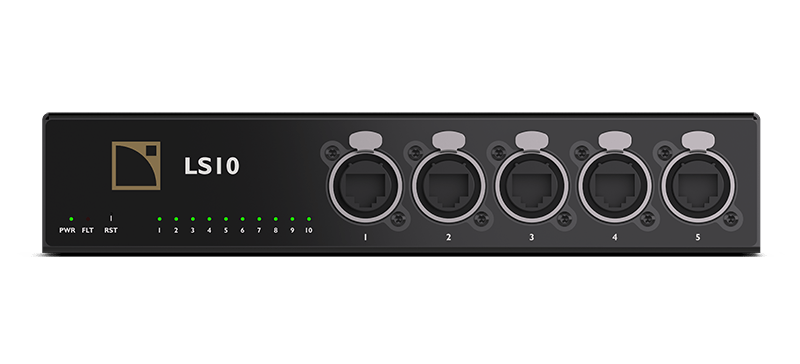

- Front

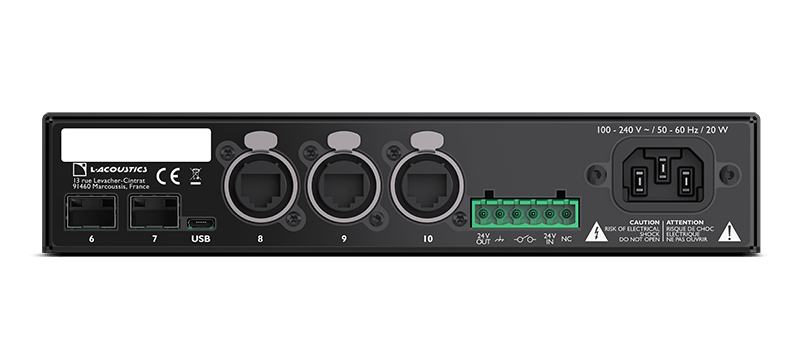

- Back
- Side

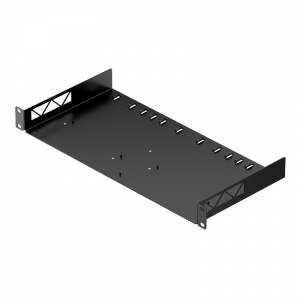

LS10
AVB Switch, Avnu-certified
| Architecture | 10-port Ethernet AVB |
| Ethernet ports |
8 EtherCONTM 1 Gb/s 2 SFP cages 1 Gb/s |
| Height x Width | 1U x 1/2 U |
| Power |
IEC inlet with V-lockTM 24 V DC redundant I/O power |
| Management | gPTP priority, RSTP |
| GPO | General fault indication |
